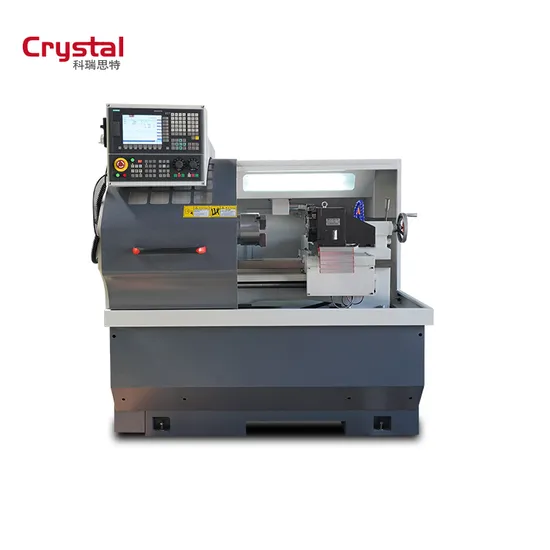

Highly Cost-Effective Hydraulic Chuck CNC Lathe Price
| US$7,450.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6132A
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Place of Origin
China
Machine Type
CNC Lathe Machine
Material
Cast Iron
Advantage
Cheap Price/ Good Quality
Processing Type
Metal
Motor Type
Servo Motor
Power Supply
Three Phase 380V/ 50Hz
Transport Package
Wooden Case
Specification
CE, SGS
Trademark
Crystal
Origin
China
HS Code
8458110000
Production Capacity
20/Month
Product Description
The currency exchange rate fluctuates greatly, please consult customer service for the best price.| Items | Specifications |
| Max. swim over bed | Φ320mm |
| Max.swim over carriage | Φ150mm |
| Max.length of work piece | 450mm |
| Range of spindle speed | 150-2500rpm |
| Spindle bore | Φ40mm |
| Spindle drawn tube diameter | Φ31mm |
| Taper of spindle bore | MT5 |
| Stations of tool carrier | 4 |
| Max.size of tool post | 20mm×20mm |
| Min.setting unit of motor | (Z) 0.001mm (X) 0.001mm |
| Moving speed of post | (Z) 8 m/min (X) 4 m/min |
| Taper of tailstock quill | MT4 |
| Max. range of tailstock quill | 100mm |
| Motor power | 4KW |
| Packing size (mm) | 1820×1100×1550mm |
| Net weight/gross weight | 1000/1200 |
