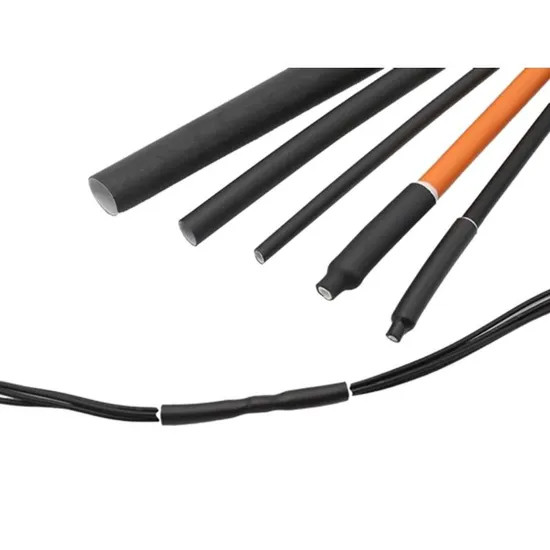

Raychem Rbk-Ils Auto Shrinkable Dual Wall Tube of Wire Harness Splice

Product Description

Product Description
W-DW(WSB) Dual wall for wire harness Splice Black Material
Outer layer: Cross-linked modified polyolefin
Inner layer: modified hot melt adhesive
Shrink ratio: 4:1
Continuous use temperature:-40ºC~125ºC;
Shrinkage temperature :100ºC~150ºC
Characteristics
·Semi-hard, flame retarded
·Excellent mechanical, electric and chemical performance;
·Excellent sealing property;
Application:
This product, designed according to the features of automobile wire harness, It has excellent leakproofness, oil resistance and
insulativity and conforms to the environmental requirements of RoHS. Meanwhile, it also has excellent mechanical property and thus
has come into extensive use in the production of various automobile wire harnesses..

Item	Test Method	Indicator
Longitudinal length change rate	UL224	-10%~0
Tensile Strength	ASTM D2671	≥10.4MPa
Breaking Elongation	ASTM D2671	≥200%
Aging Test Of Hot Air	158.0ºC±1.0ºC/168h	-
Tensile Strength After Aging	ASTM D2671	≥7.3MPa
Elongation At Break After Aging	ASTM D2671	≥100%
Volume Resistivity	ASTM D876	≥1.0x1013Ω· cm
Withstanding Voltage	ASTM D2671	2500V,60s,Without breakdown
Water Absorption	ASTM D570	≤0.5%
Thermal shock (applicable to outer layer only)	-	225ºC,4h,No breakage, no dripping
Low-temperature resistance (applicable to outer layer only)	ASTM D2671	No breakage
Solvent Resistance (diesel lubricating oil)	-	23ºC,24h,Excellent

Specification	Dimension before shrinkage(mm)	Dimension after full contraction (mm)
	Minimum inner diameter	Minimum inner diameter	Total wall thickness
5.75	5.75	1.25	1.45±0.30
7.40	7.40	1.65	1.55±0.30
11.0	11.0	2.40	2.35±0.30
14.0	14.0	3.00	2.30±0.30
18.3	18.3	4.35	2.35±0.30
