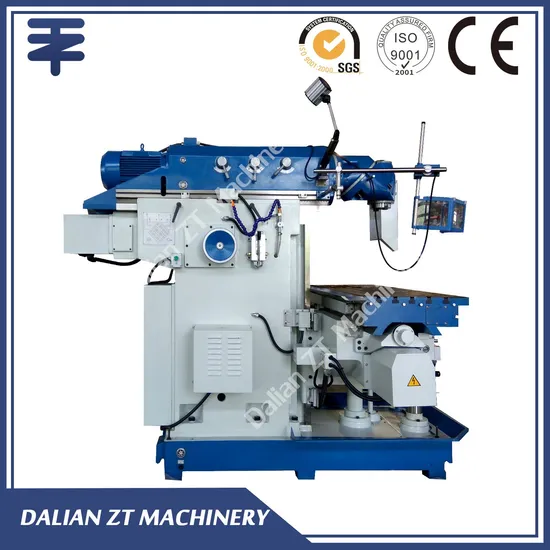

Heavy-duty RAM (Knee) Type Universal Milling Machine

Product Description

Main Feature 3 axes with ball screws, high precision 3-axis feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate C Mechanical change speeds in head stock, powerful milling
D Table with an extra supporting column, big load, high accuracy
E It can mill any angle surface through front half-sphere by swiveling milling head

Specifications	Unit	X5750
Table size	mm	500*1600
T-slots(NO./width/pitch)	mm	5*18*80
Table travel (X/Y/Z)	mm	1200*700*500
Swivel angle of milling head	-	360°
Spindle taper	-	ISO50
Spindle speed range	r.p.m	(27) 30-2050
Table feed(X/Y/Z)	mm/min	10-1000/10-1000/5-500
Table rapid speed		2200/2200/1100
Distance between spindle nose and table surface	mm	50-550
Distance from spindle center line to column	mm	45--745
Main motor power	Kw	7.5
Feed motor	Kw	AC servo motor X/Y:15NM; Z: 18NM
Max load	Kg	1800
Overall size	mm	2625*2460*2080
weight	kg	4200

FAQ
1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 13 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
