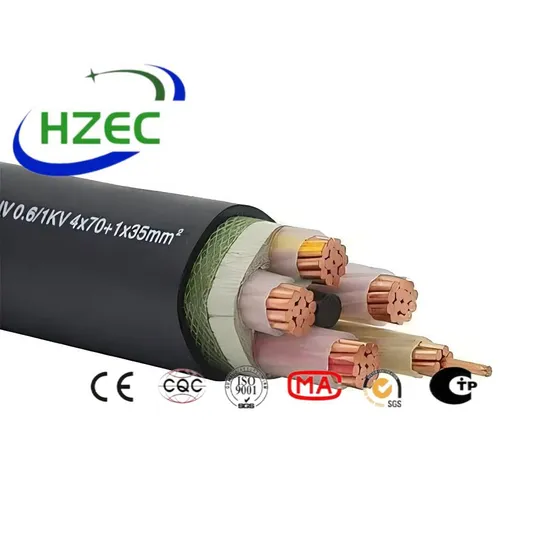

Single Core/Three Cores 4mm2 6mm2 10mm2 240mm2 Special Cable for Transducer

Product Description

Company ProfileHenan Energy Electric Equipment Co., Ltd. was established in 2011 and is an excellent and reliable power equipment manufacturer in China. The company mainly develops and produces oil-immersed transformers, dry-type transformers, box-type substations, high-voltage switches, and medium and low voltage complete sets of equipment. The equipment put into production and operation of the project advocates energy saving, intelligence, informatization, and mechanization. The company has established the Henan Triangle Energy-saving Transformer Engineering Technology Research Center, with 71 utility model patents and 15 invention patents. With years of accumulation in the transformer industry and strong technological innovation capabilities, HZEC products are sold to the Middle East, North America, South America, Europe, Southeast Asia, Africa, and other regions, covering more than 40 countries.
Product DescriptionThe product is used as power supply cable or electric connection for AC rated voltage 0.6/1kV and below transducing control system. It has strong impulse peformance, which can endure impulse voltage intransducing. Cable has better shield performance and can eliminate electro-interferance effectively, reducing motor noise of transducer and ensuring reliable operation of system. It is widely usde in the fields of metallurgy, power and petrochemical. Properties1. AC rated voltageU /U 0.6/1kV;
2. Max. working temperature: silicon rubber insulation 180 F 46 insulation 200 and 260 PVC insulation 70 ; cross-linked polyethylene 90;
3. PVC sheathed cable no lower than 0;
4. Allowable bending radius of cable: Min. cable is 10 times smaller than externial diameter.Code Designation and Meaning

Code	Code meaning
BP	Transducer power cable
Cu conductor	Omitted
G	Silicon rubber insulated or sheath
F	F46insulated or sheath
V	PVC insulated or sheath
YJ	Corss-linked polyethylene insulated
VF	Butyronitrile shield
P(P1)	Cu weave shield(tinning weave shield)
P2	Cu tape shield
P3	Al polyester composite membrane shield
PP2	Brass wire weave Cu tape shield

Product ParametersMain section area of wire core

Model	Core No.	Nominal section area mm2
All models	3+3	4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240
	3+1
	1

Grounding wire core section

Main wire core nominal section area mm2	4	6	10	16, 25	35	50, 70	95	120,150	185	240
Grounding wire core section area mm2	1(0.75)	1.5 (1)	2.5 (1.5)	4 (2.5)	6	10	16	25	35	50(35)

1. DC resistance of finished product cable conductor ( tallying with GB/T 3956);
2. Insulating resistance of finished cable (20 ): F plastic and silicon rubber insulation shall be no ºC smaller than 100M Ωkm; PVC insulation shall be no smaller than 50 MΩ km;
3. Cable of finished product can endure AC 50Hz 3.5kV/5min. testing voltage no puncture;
4. Transmit impedence equals or smaller than 100 /m as cable is in 100MHz; Restained factor of ideal screen of cable equals or smaller than 0.7.Outline Diagram Examples
