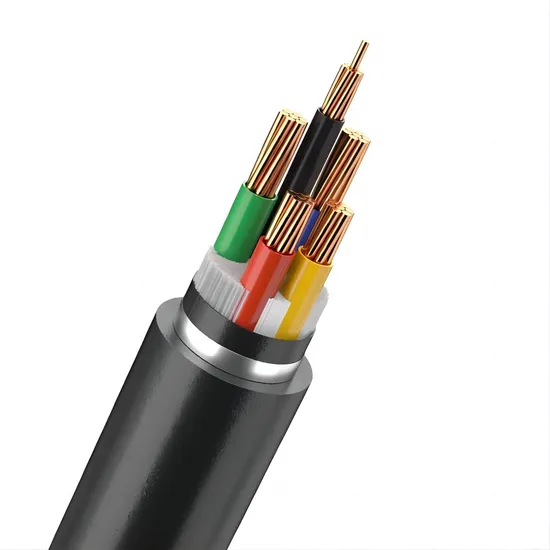

Factory Manufacturer Wholesale Price Flexible Control Cable Electrical Electric Wire Power Cable

Product Description

Product Description
Product feature and purpose:
Cross-linked polyethylene insulated power cables is characterized with high mechanical strength,strong resistance to environmental stress,excellent electrical properties ,powerful resistance to chemical attack.In addition,the light and simple products are user-friendly.This product is suitable and designed for power transmission and distribution system of rated voltage 0.6/1kv.In terms of the main feature of anti-flaming cable,the cable is not liable to ignites or continued ignition is only limited to a certain scope applicable to power station ,subway ,tunnel ,high-rise building,large industrial and mining enterprise,oil field,coal mine and other places of intensive distributed electric cables.
Operative standard:
GB/T 12706,IEC 60502 and relevant domestic and international standard.For example,BS,VDE,JIS,AEIC,and so on.
Operational performance:
The maximum allowable operating temperature of the cable conductor:90 C in normal condition and 250 C in case of short circuit (maximum duration of short circuit is 5s).

NO.of cores×section (mm²)	Normal insulation thickness(mm)	Normal thickness of oversheath		Approximate overall diameter of cable(mm)		Approximate weight of cable(kg/km)
						Cu			AL
		Unarmoured	Armoured	Unarmoured	Armoured	YJV	YJV22		YJLV	YJLV22
4×4	0.7	1.8	1.8	12.5	18.1	282	430		/	/
4×6	0.7	1.8	1.8	14.7	17	383	545		/	/
4×10	0.7	1.8	1.8	16.9	19.1	565	752		390	517
4×16	0.7	1.8	1.8	19.3	21.6	783	1020		416	663
4×25	0.9	1.8	1.8	23.5	25.7	1241	1502		593	902
4×35	0.9	1.8	1.8	26.7	28.7	1631	1957		776	1096
4×50	1.0	1.8	1.9	28.0	32.6	2080	2812		961	1770
4×70	1.1	2.0	2.1	33.2	37.5	2952	3796		1302	2222
4×95	1.1	2.1	2.3	38.0	42.6	3970	4962		1693	2757
4×120	1.2	2.3	2.4	40.9	46.4	4894	5913		2077	3363
4×150	1.4	2.4	2.6	46.0	51.3	5980	7170		2852	3878
4×185	1.6	2.6	2.7	52.5	57.8	7442	8802		3173	4618
4×240	1.7	2.8	3.0	59.4	64.6	9764	11289		4032	5782
4×300	1.8	3.0	3.1	66.2	71.6	12122	13856		4924	6735
4×400	2.0	3.3	3.4	73.8	80.3	15624	18407		6272	9313
4×500	2.2	3.5	3.7	89.3	96	19877	23264		7667	11062
4×630	2.4	3.8	4.0	99.6	106.3	25124	28895		9514	13293

Detailed Photos
Product Parameters
Certifications

Packaging & Shipping
Company Profile
Shandong Xuanlin Metal Materials Co., Ltd., was founded in 2008, covers an area of 10, 000 square metres. We are a professional manufacturing and trading company of metal building materials. We currently sell domestically and export worldwide to places such as Africa, North America and the Middle East. Our main products are aluminum foil, electrical cable, copper tube, boiler tube, casing pipe, honed tube, steel wires, PPGI/gi coil, galvanized pipe, steel structures. We have more than 30 production lines which can produce customize according to your requirements.We ensure product quality through systematic testing with technically advanced equipment. Our company has a rang of well established long-term relationships with many domestic steel companies including Bao Steel Group, Hengyang Group, Yieh Phui(China) and Ma Steel Trading. Our advantage is that we are close to national highways and high speeds, 100 kilometers from Jinan Airport and 350 kilometers Tianjin Port...The benefits of light weight, low cost, high corrosion resistance and easy installation with short construction periods have LED to steel structures becoming more widly used in modern building construction with varied applications such as factory workshops, supermarkets, cold storage rooms, plazas, villas and more.We look forward to building successful business relationships with customers around the world.
FAQ
Q. Are you a factory or a pure trading company?
A: We are a factory.
Q. Are your prices competitive?
A: for the same quality, our price is lower, for the same price, our quality is the best better.
Q. What are your company's strengths?
A: Factory spot, competitive prices, excellent quality, support factory inspection, video call at any time, technical support in 24/7. Simultaneously, we have participated in many international projects.
Q. Whether to support OEM or ODM?
A: We welcome customers to cooperate with us by OEM or ODM. We have a professional technical team, can be customized according to drawings or requirements.
Q. What trade terms do you usually use?
A: We use FOB, CIF, C&R, DDU, DDP.
Q. What is your usual delivery time?
A: From the execution date of the PI, spot products will be delivered within 3 days, and customized products within 15 days. Special circumstances, please communicate again. All our products have strict quality inspection before they leave the factory, to ensure that you receive the goods with excellent quality.
Q. What are your terms of payment?
A: We use TT and LC, or any other payment method available.
