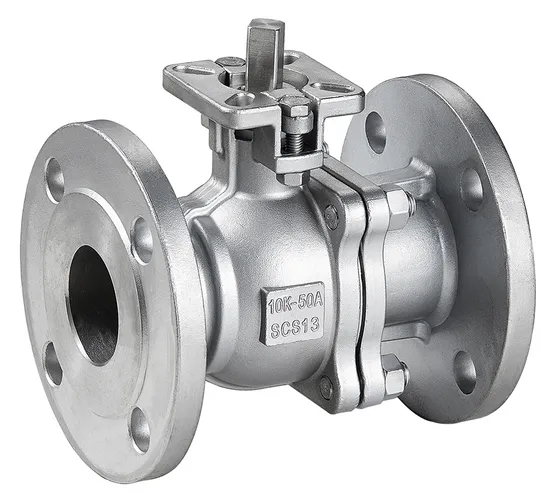

ANSI API Stainless Steel Flanged Floating Ball Valve
| US$15.00-3,500.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
Q41F
Connection Form
Flange
Driving Mode
Manual
Nominal Pressure
ANSI CLASS 150-900
Channel
Straight Through Type
Structure
Floating Ball Valve
Type
Floating Ball Valve
Function
on-pff valve
Temperature
Normal Temperature
Standard
API6D
Application
Industrial Usage, Water Industrial Usage, Household Usage
Transport Package
wooden case
Specification
1/2"~8"
Trademark
SENLI
Origin
Zhejiang China
HS Code
8481804090
Production Capacity
5000pieces/Month
Product Description
FEATURES&BENEFITS 1.Fire safe : API 607 2.Anti static : API 608 3.Face to face: ASME B 16.10 4.Flange ends : ASME B 16.5 5.Inspection and test : API 598 / API 6D Products Description : 1.Products name: ANSI API Stainless Steel Flanged Floating Ball Valve 2.Size: 1/2"-8" 3.Pressure Rating:CLASS150/CLASS300/CLASS600/CLASS900 4.Flanged end&Blow-out proof stem&Fire safe construction&Anti static device 5.Ball Type: Floating Ball 6.Port Type: Full Bore 7.ISO 5211 Mouting pad 8.Material: CF8, CF3, CF8M, CF3M, CF8C,2205, 2507,Monel and Hast. etc. 9.Ball and Stem: SS304, SS316,SS304L,SS316L,SS410,SS416.etc. 10.Valve Seat: PTFE / RPTFE / PCTFE / VITON / PEEK / DEVLON . etc. 11.Operation: Manual, Above 10" with gear operation.>> Demark Full Automatic 4 Cavity Pet Bottle Blowing Machine
