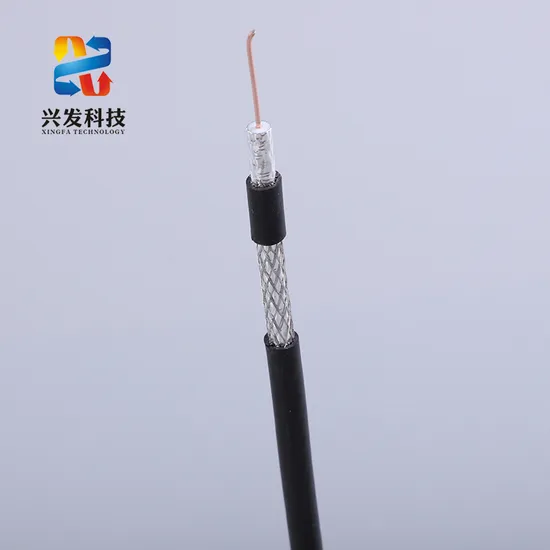

21years Professional Manufacture Produce RG6 Rg59 Coax Coaxial Cable with ETL RoHS CE (RG6)

Product Description

Hangzhou Xingfa Transmission Equipment Co., Ltd is a Pioneer manufacturer with more than 15 years experience in the communications cable industry in China. We can professionally manufacture and supply coaxial cables(RG59, RG6, RG11, RG213, KX6 etc. ), LAN cables(CAT5, CAT6, UTP, FTP, SFTP), alarm cables, telephone cables and the cable assembly etc, and many are approved by CE, ETL, RoHS and REACH. The current production capacity is about 300, 000, 000meters per year.
1.Product Construction (RG6 coaxial cable):

1) Center Conductor:18AWG 1.024mm Bare copper, 21% CCS

2) Foil Shield: Un-bonded, Bonded, Double bonded, double un-bonded Aluminum Foil, Copper foil, are Available

3) Braiding Shield:Al,BC,TC,CCA,CCS Available

Wire Diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm Available

Braid form: 16x2/3/4/5/6/7/8/9/10/11/12, 24x2/3/4/5/6/7/8 Available

Coverage: Between 30-98%

4) Jelly APD optional per requriments.

5) PVC Jacket: UV, Flame retardant, LSZH, LSLH Available

6)Electrical characteristics:

Attenuation	[@68o F. (20o C.)]
Frequency (MHz)	Maximum (dB/100 ft.)	Maximum (dB/100 m)
5	0.58	1.9
50	1.5	4.9
100	2.0	6.5
200	2.8	9.2
400	4.1	13.6
700	5.6	18.4
900	6.2	20.3
1000	6.5	21.4
1450	8.0	26.2
1800	8.5	27.9
2100	9.5	31.1
2250	10.0	34.0
3000	11.4	37.5

Examples:
1) RG6 Coaxial Cable 75ohm Dual / Standard shield
1.02±0.01mm CCS Conductor+4.57±0.05mm PE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+6.90±0.05mm PVC Jacket
2) RG6 Coaxial Cable 75ohm Tri Shielded
1.02±0.01mm CCS Conductor+4.57±0.05mm PE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+Al Foil+6.9mm PVC Jacket
3) RG6 Coaxial Cable 75ohm Quad Shield
1.02±0.01mm CCS Conductor+4.57±0.05mm PE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid +Double Al Foil+ Al Wire braiding +7.5mm PVC Jacket
4) RG6 Coaxial Cable 75ohm With Messenger
1.02±0.01mm CCS Conductor+4.57±0.05mm PE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+6.90±0.05mm PVC Jacket+1.30+0.05mm Messenger
5)OEM
