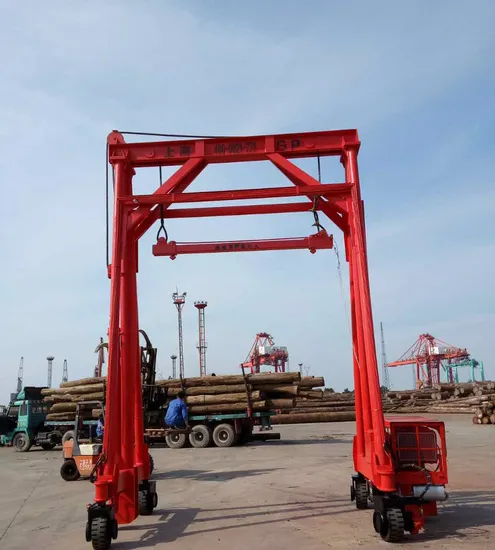

Lifting 20FT 40FT Port Container Straddle Carrier Crane Rubber Tyre Crane for Sale

Product Description

Product manual:BSDD360-400 Container Crane
BSDD360-400 mobile container crane is designed for small and medium sized container yard,
SMEs containerized production, the lowest operating costs of one Container crane (Container
crane earth).
The car with 490BPG diesel-powered, low noise, low vibration characteristics of the vehicle.
Body by a steel frame, steel, hydraulic drive system of hydraulic motors, gear pumps, steering
cylinder, lifting cylinder, double-acting balancing valve, walking solid tires and other
components. Lifting with a diameter of 180 mm cylinder, lifting capacity, low pressure systems,
hoisting fall stable, safe, efficient loading and unloading. Use two-wheel drive, four-wheel
steering, the maximum angle of 110 degrees, to achieve any angle of the steering and panning,
small turning radius. Control system consists of a complete set of body composition and the
operating lever, flexible operation, simple and convenient. The total height of the reduced
model, applicable to the plant.
The car requires a flat, after the hardening, no potholes use of the site. Suitable for handling
logistics companies, warehouses, docks, container yard, container yard and other places, it is
a cheap, convenient and practical container lifting equipment.

Specifications
1	model number		BSDD300	BSDD360	BSDD400
2	total weight	T	6.9	7.3	7.8
3	rated capacity	kg	30000	36000	40000
4	max. steering speed(without load)	km/h	3.5	3.5	3.5
5	min. passageway width	mm	3200	3200	3200
6	rated torque of hydraulic motor	Nm	1010	1010	1010
7	max.lifting speed (without load)	mm/s	35	35	35
8	max.falling speed (without load)	mm/s	25	25	25
9	max.lifting speed (with load)	mm/s	25	25	25
10	max.falling speed (with load)	mm/s	30	30	30
11	engine power	Kw	37	37	37
12	system pressure	Mpa	14	15	16
13	rotation angle of turning wheel	°	110	110	110
Specifications of structure
14	L*W*H	mm	5055*2655*6000
15	max. height of lifting beam	mm	4500	4500	4500
16	lowest height of lifting beam	mm	2270	2270	2270
17	The minimum ground	mm	110	110	110
Clearance
18	Longitudinal track	mm	2205	2205	2205
19	crosswise tread	mm	3725	3725	3725
20	inside width of crosswise	mm	3275/3380	3275/3380	3275/3380
21	Wire rope diameter	mm	28	28	28
22	Tire size	mm	450*180	450*180	450*180
