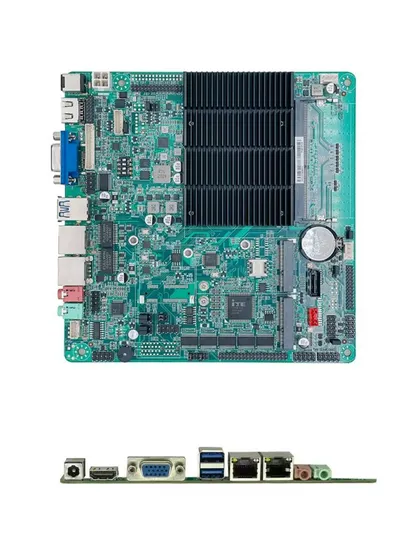

Industrial Mini Itx Embedded Motherboard Dual Gigabit Ethernet + 4G/WiFi Expansion Onboard Emmc Storage Support Win/Linux System

Product Description

Integrated with Intel®Celeron J4125 2.0GHz quad-core processor,TDP 10W,Compatible with Intel® Gemini Lake full series CPU
1* SODIMM slot,support single-channel 2400MHz DDR4 memory,Up to 8GB(Default); Can onboard LPDDR4 4G/8G
1* VGA,1*HDMI,1*LVDS
1* Realtek RTL8111H Gigabit Ethernet Port(2 x LAN optional)
2* COM(6*COM as option)
Adopt DC 12V Power Supply
Intel®Celeron J4125 Quad Core Thin ITX AIO Motherboard ITX-J41 VER:1.0

Specification

Processor

Integrated with Intel®Celeron J4125 2.0GHz quad-core processor,TDP 10W,Compatible with Intel® Gemini Lake full series CPU

Memory

1* SODIMM slot,support single-channel 2400MHz DDR4 memory,Up to 8GB(Default); Can onboard LPDDR4 4G/8G (optional)

Display

Integrated with Intel®UHD Graphics 600

1* VGA,1*HDMI,1*LVDS or eDP( LVDS as default)

Support VGA/HDMI/LVDS or eDP synchronous / asynchronous display

Ethernet Ports

1* Realtek RTL8111H Gigabit Ethernet Port(2 x LAN optional),Support Wake-On-LAN/PXE

Strorage

1* 7pin SATA3.0,Transfer rate up to 6Gbps

1*2.5" HDD slot ( Optional, 7pin SATA 3.0 as 2nd option)

support Onboard 64GB eMMC (optional)

1*mSATA 3.0 ( Long card)

Audio

Onboard ALC888 6-channel High Fidelity Audio Controller,Support MIC/Line-out,Amplifier

Extension Slot

1* Mini-PCIe slot( Half card /Long card supported),Support WIFI/4G modular(4G as option,need hardward modification if required 4G function )

1* Mini-PCIe slot(Half card,optional),WiFi modular supported

1* PCIe x1 Slot(Optional)

Back I/O

1* HDMI

1*VGA

2* USB 2.0(2xUSB2.0/ LAN2 for option)

2* USB3.0

1* RJ-45 gigabit ethernet Port(LAN2/USB2.0 as option)

1* Line out(red)/1* MIC(red)

1* 12V DC power input

Inner I/O

1* JHDMI 2*8Pin(Optional)

1* JVGA 1*12Pin (Same signal with DB15)

1* LVDS 2*15pin,Support dual channel 24bit(eDP as option,default)

1* Sreen Backlight Power Interface 1*6pin

1* eDP 2*15pin(Optional,LVDS as default)

4* USB 2.0 2*5Pin (6 x USB2.0 supported when 2*LAN;1x USB 2.0 without effect when need 4G supported)

1* front Audio Interface 2*5pin

1* Amplifier interface 1*4pin

2* COM(6 x COM as option,COM2 support RS485,The 9th Pin of COM1/2 charged)

1* LPT

1* 4pin ATX Power Interface

1*Hard disk Power Interface

1* front panel On/Off button and Indicator 2*5Pin

Fan Interface

Fanless Design,Reserve 1*4pin CPU fan interface,reserve 1*4pin system fan interface

GPIO

Support 4-Way Input/Output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support Hardware Reset function(L256,0~255s)

OS

Windows 7/Windows 10/Linux

Power Type

Adopt DC 12V Power Supply

Working Temp.

60ºC~-10ºC

Storage Temp.

-20ºC~70ºC

Working Humidity

5%-95% relative humidity,No-condensing

Dimmension

170mm x 170mm

Package

1*COM Cable

Order Information

#

Item No.

CPU

Core

Frequency

Memory

HDMI

VGA

LVDS

PCI

LAN

USB

PS2

LPT

COM/485

POWER

1

ITX-J41 -L12 VER1.0 (J4125)

J4125

4

2.0G

1* DDR4

1

1

1

/

1

8

1

1

2 / 1

12V

1

ITX-J41-L16 VER1.0 (J4125)

J4125

4

2.0G

1* DDR4

1

1

1

1

1

8

1

1

6 /1

12V

2

ITX-J41-L26 VER1.0 (J4125)

J4125

4

2.0G

1* DDR4

1

1

1

/

2

8

1

1

6 / 1

12V

Other Thin ITX Mother Board for reference
EPIC-45X Haswell I3/I5 2*LAN/3*LAN/4*LAN 6*COM HDMI/LVDS/VGA
FAQ 1. Do you provide OEM/ODM service?
A: Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.

2. What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.
3. What payment method do you use?
A: T/T,PayPal.
4. What is the lead time of your product?
A: 3 days for sample, 15 working days for large quantity.

5. How does your factory do related quality control?
A: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.
6. What is the warranty time of your product?
A: 1 year warranty for non-artificial damage, for the 2nd to 3rd year we can repair it free, but will charge for the parts that needed to change.
7. Does your motherboard can work 24*7 hours?
Our low power consumption industrial boards have passed very strict tests, there is no problem to work 24*7 hours.
8. Are you a factory or trading company?
A: R&O is a leading R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products industry.
Our products include: mini-itx motherboard,all-in-one motherboard, 3.5'' industrial motherboard, firewall motherboard, NVR&industrial motherboard, mini PC , HTPC, all-in-one PC, embedded PC, vehicle computers, cloud terminal, networking security, OPS mini PC, NAS storage server, etc.
Computer, OEM / ODM available.

9 If we come to China, can you arrange the visiting to your factory?
A: We warmly welcome and look forward to your visiting to our factory at any time.
