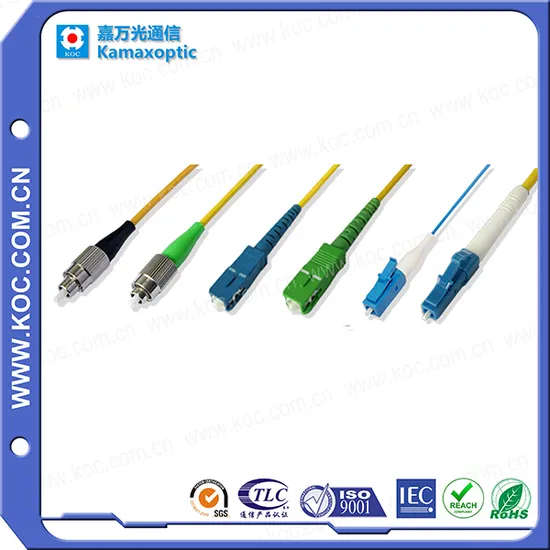

FTTH Connection Optical Fiber for Network Data Center
Basic Info.
Model NO.
sc, st, lc, fc
Connection Structure
Sc,LC,St,FC,MTRJ
Material Shape
Round Wire
Allowed Lateral Pressure
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength
100N<1000N
Core
Single Core, Double Core,Multicore
Certification
RoHS, CE, ISO9001
Brand
OEM
Sheath Material
PVC
Cable Diameter Szie
0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm
Cable Jacket Color
Blue,Orange,Yellow,Aqua, Magenta,Black, Gray,Pink
Cable Jacket Material
LSZH,PVC, Ofnr, Ofnp, PE, Rised
Connector Housing Color
Blue,Orange,Yellow,Aqua, Magenta,Black, Gray,Pink
Cable Length
1m, 2m, or Customization
Label
Sticker, Paper
Boot Type
LC Uniboot, Slotted Boot, Smooth Boot, Rubber Boo
Transport Package
Zipper Bag, Carton Box
Specification
SGS; RoHs
Trademark
koc
Origin
Made in Shenzhen
HS Code
85447000
Production Capacity
500000 PCS/Month
Product Description
With 22 years history, KOC is a well-established brand popularly accepted in the world-wide market, especially in European and American countries. We are a professional manufacturer of most passive parts such as patch-cord, connector, adapter, attenuator,splitter, WDM serious. For more detail, please check on our website kocchina.en.made-in-china.com.In case of need, please do not hesitate in contacting us.
APPLICATIONS
CATV
Telecommunication networks
Active device termination
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)
FEATURES
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-326-CORE
SPECIFICATIONS
| Single mode | Multimode | |
| Insertion Loss | Typical≤0.2dB, Maximum≤0.3dB | ≤0.25dB |
| Return Loss | ≥50 dB (PC) ≥60 dB (APC) | ≥30 dB |
| Repeatability | ≤0.1 | |
| Durability | ≤0.2 dB typical change, 1000 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N | |
| Operating Temperature | -40 to + 85°C | |
ORDERING OPTIONS
| Connector Color | Boot (cable) Size | Boot Color | Fiber Type | Cable number | Application | Length |
| Beige | 0.9mm | Beige | 9/125μm (SM) | Simplex | PC | Customized |
| Blue | 2.0mm | Black | 50/125μm(MM) | Duplex | APC | |
| Green | 3.0mm | Blue | 62.5/125μm(MM) | Fan-out (4f) | ||
| Green | Fan-out (6f) | |||||
| Gray | Fan-out (8f) | |||||
| Red | Fan-out (12f) | |||||
| White | Fan-out (24f) |
Note: The price range is forPIGTAIL LC-LC Singlemode Simplex 3.0mm 5meter.
