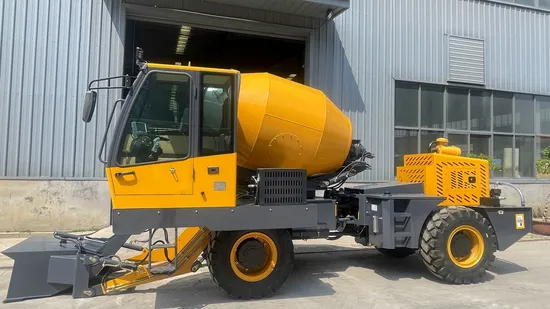

2.0 Cbm Shovel Self Loading Cement Mixing Mini Mobile Concrete Mixer Truck Factory Price

Product Description

Mobile concrete mixer feature combines self-loading,weighting,mixing and discharging,it can maximize and improve the job efficiency and reduce the production cost and time.
High efficiency Capacity:8-10 cubic meters per hour Labor-saving 4 WD Loading,pumping,mixing,delivering and discharge Ultimate tank capacity technology can discharge with different angles by chute. The clever discharge cone is designed,to provide stronger material sealing capacity and higher filling rate,thus improving the loading capacity of the tank up to 6%. Loading capacity is larger for the same volume. The center of gravity is low for the same loading capacity. High-strength wear-resistant applicationz Tank and blades are made of high-strength wear-resistant steel,with service life increased by 30%. Hoppers and detachable chutes are made of multilayer high-strength wear-resistant liner plate,with service life increased by 50%. New exterior styling Overall machine features attractive appearance,smooth stream line,perfect streamlined hopper,arc-shaped rear support,and full steel catwalk,giving more attractive design to provided you a new experience. Efficient hydraulic drive system . As the complete vehicle is equipped with four-wheel drive,it can be used for efficient and stable concrete production in harsh working conditions. Four-dimensional mixing technology. Large rise angle is designed at from cone to provide uniform mixing,with changed on a slump change at all stages of ≤5%. Unique continuous trace design is used,with residual rate≤0.4%. Large gliding angle is designed at rear cone,to ensure fast discharge at idle speed. Safe and flexible operation system Longitudinal resistance-free design is used,to provided more flexible manipulation. Front and rear linkage double-limit structure is used,to provide higher safety. Convenient water supply system Integrated control is used with one-inlet and multiple-outlet applied,convenient and fast. Liner water tank structure is used with service life increased by 50%. Cabin:Front cab on side of loading shovel ROPS-FOPS type complete wit double closing door,camera,air conditioning,available upon Request
Joystick:All hydraulic functions of shovel controlled by a single joystick.
Loading shovel:effective capacity per loading complete with hydraulic opening gate with bigger blade. Working table controlled by microcomputer, water temperature, oil temperature, current are all insight Adjustable seat, convenient and comfortable to us

Name	Item	Specification
	Net	8300 KG
	Gross	12675KG
	Transmission	Full Hydraulic
		4WD
	Brake	Air Brake
	Chassis	Off-road
	Tread	1880
	Wheelbase	2250mm
	Loader bucket	capacity		0.6m3
		Control		Hydraulic
	Tilt angle	30%
	Speed	High		0-25KM/H
		Low		0-9KM/H
	Mini turning radius	6.5M/R
	Tyre model	16/70-20
Engine	Type	Yuchai	4108
	Rated Power/RPM	85KW/2200RPM/125HP 2200RPM
	Max.Torque/RPM	460N.M/1400RPM
	Cylinder	4
	Starter	Electric
	Cooling type	water cooling
Maxing Drum	Drum capacity	3.85M3
	Bank Angle	16 °
	Rotation Angle	17-21R/min
Chute	Swing Angle	≥60°
	Angle control	Hydraulic
	Size	Long:176cm
		Short:40cm
Loader	Weighing model	computer control
		Concrete Standard			C15.C20.C25 C30
	Accuracy	concrete			≤±2%/time
		Relative Error			≤±3%/time
		water			≤±1%/time
		Additive			≤±1%/time
		Admixture			≤±2%/time
Control	One hydraulic 4 way stick
Overall size	7500*2700*3380mm

Name	Item	Specification
	Net	5430 KG
	Transmission	Full Hydraulic
		4 WD
	Brake	Air Brake
	Chassis	Off-road
	Loader bucket	capacity		0.4m3
		Control		Hydraulic
	Tilt angle	20%
	Speed	High		0-25KM/H
		Low		0-9KM/H
	Mini turning radius	4.5M/R
Engine	Type	Yunnei
	Rated Power/RPM	55KW/2200RPM
	Max.Torque/RPM	360N.M/1400RPM
	Cylinder	4
	Starter	Electric
	Cooling type	water cooling
Maxing Drum	Drum capacity	1.5M3
	Bank Angle	16 °
Chute	Swing Angle	≥50°
	Angle control	Hydraulic
Loader control	Hydraulic 4 way stick
Over size	6180x2430x2626mm

Saintyol DAWIN Machinery is a company specializing in the research, design and production of construction machinery for nearly 20 years. We provide the most reasonable solution according to the special demand from different customers. Our main products for construction machinery are as follows: Concrete mixer, concrete batching plant, diesel concrete mixer, concrete pump, sand so on. With several researching and producing bases in China, we can provide the powerful technical service and upper quality machinery for the clients all over the world.
We take care of your order!
1. Best manufacturer in North China.
2. A factory with over 20 years' experience.
3. Professional teamwork of every process.
4. Competitive price and perfect quality.
5. Efficient after-sale service.
After-sale Service
1. May enjoy the life-long service after you buy our products.
2. Training the operator for free.
3. Under the condition that foundation, water source, power source, aggregate, hosting
Equipment, auxiliary staff is ready. Engineers are available if you need.
4. Certain quantity stochastic tool will be provided while delivering goods.
5. Within 48 hours service will be available according to different regions after received
The telephone.
6. For exported products, Our company sends the constructor to help to operate and
Management equipment, time according to your needs. The related fee will be undertaken
By buyers.
7. Promptly provides the fittings according to users' demands, handles for the user consigns
For shipment.
8. All products (easy worn parts not included) loss caused by non-human factors will be
Free of charge for half a year.
9. Provides the technology advisory service as necessary.
10. Please contact me via telephone when you have any problems with the plant.
