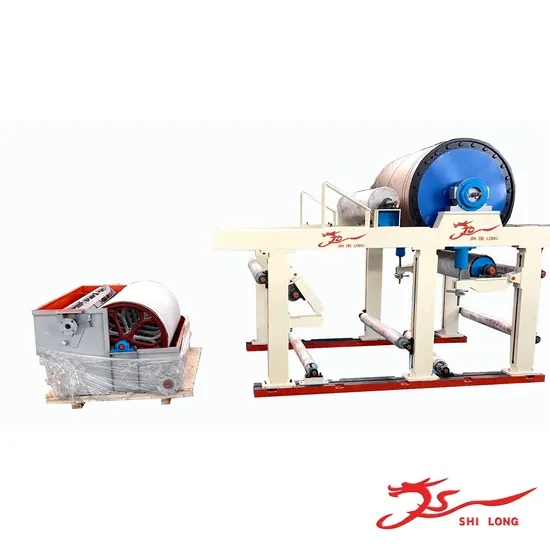

Waste Paper Recycling Machinery Plant Fully Automatic 787mm Toilet Tissue Machine Production Line

Product Description

Factory Direct Sales of 787mm Waste Paper Recycling Machine Toilet Paper Making Machine Product Description Products Description
Toilet paper machine adopts forward pulp hang type to feed pulp. Paper machine mainly consists of felt washing, cylinder mould part, drying part, reeling, driving and gas hood. Speed of the equipment is fast and paper quality is good. Easy to operate and no training for a long time. Toilet paper machine mainly divided into these parts: headbox, fourdrinier wire part, press part, drying part and reeling part.
We have toilet paper making machine models for 787, 1092, 1575, 1880, 1760, 2880, 2100, 2400, 2880, 3200, 3600, 3900, etc. We accept customization. The machine uses waste paper as raw material, and the price is related to the configurations such as capacity, paper width, and paper weight.
Note:In order to give you the exact design and offer, kindly advise your below requirements for this paper machine:
·What kind of paper do you want to produce?
·What raw materials will you use to produce the paper?
·What is the paper GSM·What is the paper trim width?
·What is the daily capacity (ton/day) of the paper?
·What is your land size for this paper mill? Product Paramenters

Product name	SL-787 toilet paper making machine
Raw material	Wood pulp,waste paper
Finished products	Toilet paper
Paper width	787mm
Paper weight	14-35g
Working speed	40-60m/min
Transmission mode	Reducer drive
Design speed	80m/min
Yield	1 t/d
Power	7.5kw

Structure and characteristics of 787mm toilet paper machine 1.Cylinder section:Φ1000mm×1100mm stainless steel cylinder mould 1set, Φ260mm×1100mm couch roll 1set,coated by rubber,rubber shore hardness 38°C±2.
2.Dryer section:Φ1250mm×1100mm cast iron alloy dyer can 1 set, Φ300mm×1100mm touch roll 1set,1group scraper knife. rubber shore hardness 90°C±2.Mechanical pressure device.
3.Paper cutting section: 787mm slitting machine1set .
4.Drive and control section: Alternating current , speed control , section drive. Raw Material:
Wood pulp, waste white shavings, waste notebook, waste paper with ink as raw material.
Finished paper
Production flow chart reference
