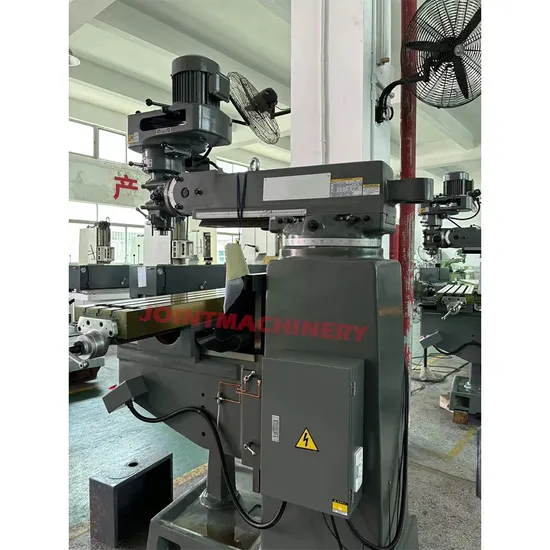

3HP Milling Machine with Precision Spindle Bearing Processing Metal Holes Slots Frame

Product Description

√ Suitbale for household and daily necessities mold processing.
√ Excellent accessories, strict quality control, long durability.
√ Hard-grinding guide way, thick machine body, effctive casting, the whole machine is durable.
√ Milling head key parts from Taiwan, bearings from Chinese famous brand.
√ High efficiency, strong cutting machine performance.
WOKRTABLE Ultra-audio quenching, precision grinding and scraping guide. Rotary table is optional.
TURRET MILLING HEAD Turret milling head can swivel 45° (forward-backward), rotate 90° (left-right). Easy to mill at special angle.
SPINDLE High precision R8/NT30/NT40 spindle, spindle runout:0.003mm
X/Y/Z AUTO FEED X/Y axis auto feed, Z axis electric lifting, improve machining efficiency.
DRO Based on customer needs, optional 2-axis DRO or 3-axis DRO.

3HP Milling Machine with Precision Spindle Bearing

Item		Unit	4VB	4VC
Table size		mm	1270*254*90	1370*254*90
Travel	Longitude(X)	mm	900	1000
	Crossward(Y)	mm	440	440
	Vertical(Z)	mm	390	390
Travel of spindle quill		mm	127	127
Max diatance from the spindle nose to table		mm	420	420
Spindle	Rotation speed (Step speed milling head)	50HZ rpm	66-4540	66-4540
	Rotation speed (Step speed milling head)	60HZ rpm	80-5440	80-5440
	Taper	-	R8(NT30)	R8(NT30)
	Rated power	HP	3HP	3HP
Tilt angle	Forward and Backward	°	±45°	±45°
	Left and Right	°	±90°	±90°
Dimension		mm	1500*1700*2150	1600*1800*2150
Net weight		kg	1350	1350
