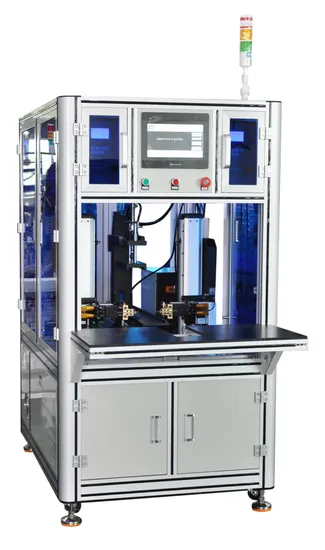

Machine Welding for Energy Storage Battery, Electric Car Battery, Electric Motorcycle Battery and Other Modular Power Lithium Battery Pack

Product Description

transistor spot welding machine
The 10000A series transistor based spot welding technology is currently a high-end welding power source in the market, characterized by fast current rise speed, high discharge efficiency, and very stable welding performance. Real time monitoring of voltage, current, and power, with polarity switching function for false welding and explosive welding alarms, allowing for real-time control of welding quality and ensuring the reliability of welding quality; Suitable for the welding of lithium/nickel hydrogen/nickel cadmium batteries and battery combinations, as well as for the welding of metal parts such as small hardware and electrical appliances. It is suitable for the welding of various welding materials and diverse welding process requirements, especially in situations with high-quality welding requirements.

Main technical parameters
Power input:		Power consumption:
X-axis stroke:		Y-axis stroke:
Spot welding drive stroke:		Rotation angle:
Nickel	0.05-0.3mm (Convex point fork)	Welding pin life:	About 3 million times
plate thickness:
Sports module:	Ball screw TBI+linear guide rail	Drive method:	Brand servo motor drive
Spot welding efficiency:	4000-4500PCS/hour	Range of battery capacity:	18650 Example: 480 pieces
Program storage mode:	0-99 groups	Programming method:	Array programming/CAD mapping
Welding needle diameter:		Electrode heat dissipation:	Water refrigeration cycle system
Working air pressure:		Welding machine power supply:	Transistor type 10000A
External dimensions:		Overall weight:	About 400KG

Specification and model	10000A
Maximum current	10000A
Maximum power consumption	400W
Maximum welding current	10000A
