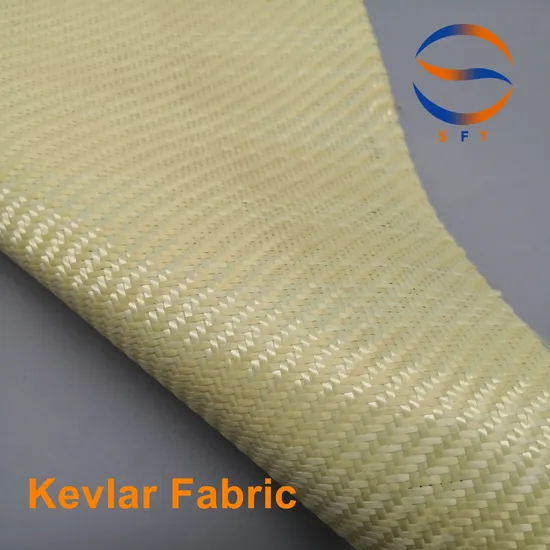

200GSM 1000d Customized Aramid Kevlar Fiber Fabric for FRP
| US$5.00-15.00 | 100 Square Meters (MOQ) |
Basic Info.
Model NO.
200gsm aramid fabric
Material
Kevlar
Pattern
Twill
Structure
Fabric Form
Style
None
Type
Weave
Width
Customized 100-3000mm
Spec
1000d
Standard Width
800-1500mm
Warp Density
9
Weft Density
9
Thickness
0.26mm
Weave
Plain/Twill
Transport Package
Carton & Pallet
Specification
200gsm
Trademark
SFT
Origin
China
HS Code
681599
Production Capacity
1000000m2
Packaging & Delivery
Package Size
28.00cm * 28.00cm * 110.00cm
Package Gross Weight
24.000kg
Product Description
Aramid Kevlar ClothPlain/twill weave
Description: It is a new synthetic fiber with high strength and modulus.
It has good performance of insulation, heat resistance, aging resistance, flame retardant and spinnibility.
Technical Data Sheet:
| Type | Yarn | Weave | Density(10mm) | Weight | Thickness | Width(cm) | ||
| Warp | Weft | Warp | Weft | (g/m2) | (mm) | |||
| 50P | 200D | 200D | Plain | 11.25 | 11.25 | 50 | 0.09 | 10-300 |
| 100P | 600D | 600D | Plain | 8 | 8 | 100 | 0.15 | 10-300 |
| 115P | 800D | 800D | Plain | 7 | 7 | 115 | 0.16 | 10-300 |
| 140P | 1000D | 1000D | Plain | 6 | 6 | 140 | 0.22 | 10-300 |
| 160P | 1000D | 1000D | Plain | 7 | 7 | 160 | 0.24 | 10-300 |
| 160T | 1000D | 1000D | Twill | 7 | 7 | 160 | 0.24 | 10-300 |
| 200P | 1000D | 1000D | Plain | 9 | 9 | 200 | 0.26 | 10-300 |
| 200T | 1000D | 1000D | Twill | 9 | 9 | 200 | 0.26 | 10-300 |
| 170P | 1500D | 1500D | Plain | 5 | 5 | 170 | 0.23 | 10-300 |
| 200P | 1500D | 1500D | Plain | 6 | 6 | 200 | 0.26 | 10-300 |
| 220T | 1500D | 1500D | Twill | 6.5 | 6.5 | 220 | 0.28 | 10-300 |
| 300P | 3000D | 3000D | Plain | 4.5 | 4.5 | 300 | 0.42 | 10-300 |
| 300T | 3000D | 3000D | Twill | 4.5 | 4.5 | 300 | 0.42 | 10-300 |
| 400P | 3000D | 3000D | Plain | 6 | 6 | 400 | 0.55 | 10-300 |
| 400T | 3000D | 3000D | Twill | 6 | 6 | 400 | 0.55 | 10-300 |
| 450P | 3000D | 3000D | Plain | 6.5 | 6.5 | 450 | 0.7 | 10-300 |
Palin Weave
Twill Weave:
SFT Industries Co., Ltd is specialized in high performance fiber reinforced plastics materials, integrating development, production and trade together. Our main products include carbon fiber, aramid fiber, PVC foam core, FRP tools and a range of FRP related products to many countries. Serving for boat building, wind energy, traffic vehicle, sports equipment, anti-corrosion, electrical insulation, high temperature resistant etc.
Our insistance and devotion will bring you satisfactory service. It's our honor to become your reliable partners. Hope to develop with you in the future.
