Z3050X16 Hydraulic Radial Drilling Tapping Machine
| US$5,000.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3050X16
Controlling Mode
Hydraulic
Number of Shaft
3
Hole Diameter
50-100mm
Automatic Grade
Hydraulic
Precision
Normal Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Drill Capacity
50mm
spindle travel
220mm
spindle taper
MT4
Power
4KW
speed steps
6
Transport Package
Plywood Case
Specification
2800kgs
Trademark
HOTON
Origin
Shandong, China
HS Code
8459590000
Production Capacity
5 PCS/Month
Product Description
Product introduction
1.The main key pieces of high strength cast iron and special steel.
2.By the specialized equipment to ensure continuous processing, sophisticated infrastructure components.

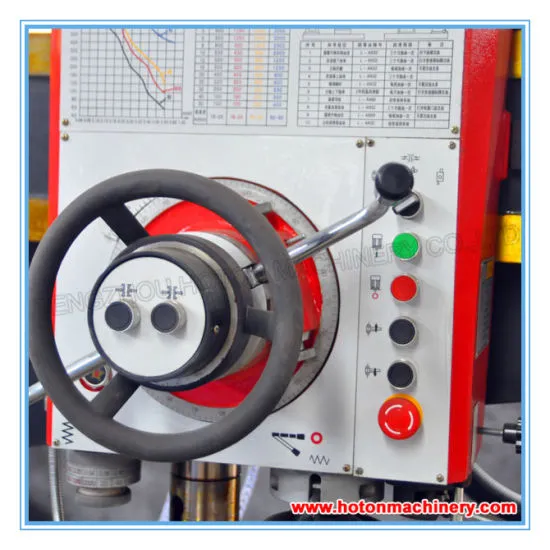

3.Spindle positive, parking ( brake ), transmission, free action, with a handle control, operate more conveniently and quickly.
4.Rocker guide rail, the outer column surface, spindle, spindle sleeve and the inner and outer column rotary raceway are conducted quenching treatment, can maintain the stability of machine tool accuracy, prolongs the service life.
5.Have good safety protection device and the outer column protection.
6.The structure design and in the manufacturing process, but also adopted a series of effective measures, so that the precision of the machine tool durability and the service life of the whole machine are enlarging.
7.The new coating technology and the continuous improvement of appearance display style of the times.
| Specification | Units | Z3050×16 |
| Max. drilling diameter | mm | 50 |
| Distance between spindle axis and column | mm | 350-1600 |
| Distance spindle nose and work surface of base | mm | 320-1220 |
| Rocker arm lifting distance | mm | 580 |
| Rocker arm lifting speed | m/s | 0.02 |
| Spindle travel | mm | 315 |
| Spindle taper | Morse | 5 |
| Range of spindle speeds | r/min | 25-2000 |
| Number of spindle speeds | step | 16 |
| Range of spindle feeds | mm/r | 0.04-3.20 |
| Number of spindle feeds | step | 16 |
| The maximum torque of the spindle | N.M | 500 |
| Spindle maximum feed resistance | N | 18000 |
| Table size | mm | 630×500 |
| The spindle box of horizontal moving distance | mm | 1250 |
| Spindle motor power | kw | 4 |
| Hydraulic clamping motor power | kw | 0.75 |
| Cooling pump motor power | kw | 0.09 |
| Arm lift motor power | kw | 1.5 |
| Machine weight | kg | 3500 |
| Overall dimension | mm | 2500x1070x2840 |
| Contact Us: |
| Miss Wynn Sales ManagerTENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 16678336698 hotonmachinery.en.made-in-china.com |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
