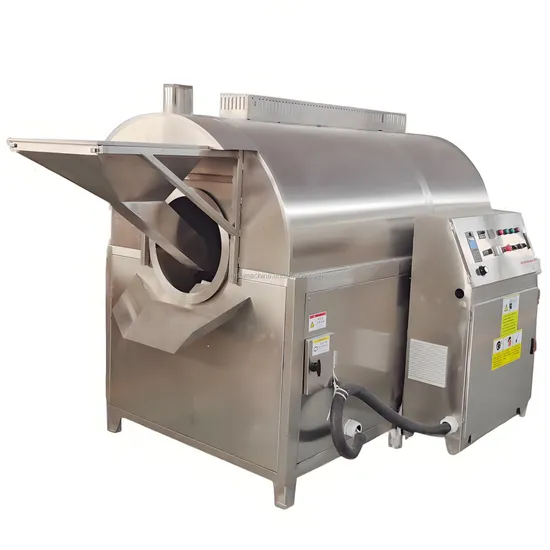

Industrial Sesame Roasting Cocoa Bean Soybean Peanut Nut Electric Roaster Machine

Product Description

Product Description
This Hot sale Industrial Sesame Cocoa Bean Soybean Peanut Nut Electric Roaster Machine is an intelligent automatic drum roasting machine with the functions of intelligent temperature control, automatic rotation, and automatic discharge. The equipment adopts electromagnetic heating which is energy-saving and environmental protection. The drum body is heated evenly. When the material in the tank reaches the set temperature value, the equipment will automatically alarm.
The electromagnetic roasting machine adopts electric induction heating. The heat acts directly on the cylinder, and there is no heat transfer loss. The thermal efficiency is as high as 95% or more. The barrel is a composite body that prevents heat radiation to the environment. Its service life can reach more than 40,000 hours. The machine is equipped with an intelligent control system, which is easy to operate.
Product Parameters
Model: TDNR-5-4
Capacity: 8-20kg/h
Power range: 1-5KW
Motor power: 0.25KW
Voltage: Single phase/220V
Net weight: 210kg
Machine size: 930x660x1270mm
Drum size: 500x400mm
Package size: 760x1020x1430mm
Model: TDNR-5-10
Capacity: 30-60kg/h
Power range: 3-15KW
Motor power: 0.4KW
Voltage: 3phase/380V
Net weight: 300kg
Machine size:1580x750x1330mm
Drum size: 500x1000mm
Package size: 1670x840x1490mm
Model: TDNR-7-10
Capacity: 60-250kg/h
Power range: 4-32KW
Motor power: 1.1KW
Voltage: 3phase/380V
Net weight: 480kg
Machine size: 1650x950x1520mm
Control box size: 660x540x1330mm
Drum size: 700x1000mm
Package size: 1680x1050x1670mm
650x580x1430mm
Model: TDNR-7-15
Capacity: 100-350kg/h
Power range: 6-48KW
Motor power: 1.5KW
Voltage: 3phase/380V
Net weight: 580kg
Machine size: 2000x950x1520mm
Drum size: 700x1500mm
Package size: 2280x1050x1670mm

Model: TDNR-9-16 (7-56KW)
Capacity: 150-450kg/h
Model: TDNR-12-16 (7-60KW)
Capacity: 200-600kg/h
Model: TDNR-12-20 (7.5-56KW)
Capacity: 250-700kg/h
Continuous Roasting Line
Capacity: 150-800kg/h
Elevator:770x2140x1840mm
Roaster: 4500-8500mm long
Vibrating screen: 1300×750×1930mm
Cooling conveyor: 6300x700x770mm
For more models, please send an inquiry.

Model	Capacity	Induction Power	Motor Power	Drum (mm)	Dimension (mm)
TDNR-7-10	60-100KG	5-35KW	1.1KW	700*1000	2100*1450*1460
TDNR-7-15	100-150KG	5-45KW	1.5KW	700*1500	2600*1450*1460
TDNR-9-15	150-200KG	5-55KW	3KW	900*1500	3000*1690*1670
TDNR-10-15	200-300KG	5-60KW	3KW	1000*1500	3500*1690*1670
TDNR-12-15	300-400KG	5-70KW	4KW	1200*1500	3500*1690*1670
TDNR-12-20	400-500KG	5-80KW	4KW	1200*2000	3500*1690*1670

Application
The Hot sale Industrial Sesame Cocoa Bean Soybean Peanut Nut Electric Roaster Machine is currently the most energy-efficient and environmentally friendly seeds and nuts roaster equipment. It is widely used in roasted seeds and nuts, spices, pharmaceuticals, chemicals, and drying products processing.
