Automatic Paper/Plastic Sheet Die Cutting and Creasing Machine

Product Description

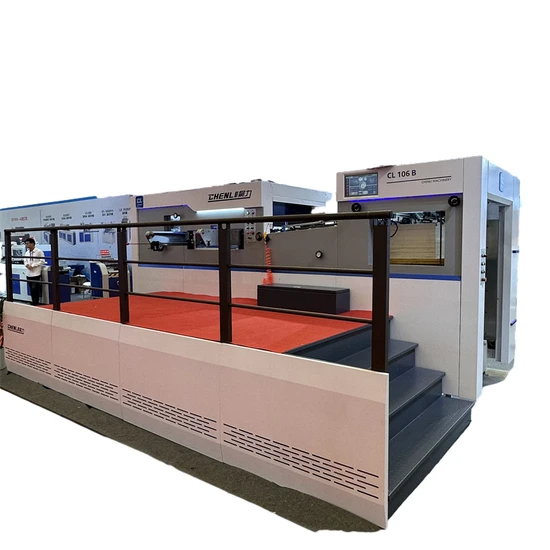

CL-106B Automatic Die Cutting Machine
Detailed Photos
Product Description Automatic die-cutting & stripping machine is the key device for the production of cartons, paper boxes and high standard paper products, etc. It is especially applicable to the automatic die-cutting and stripping of complicated paper boxes and cigarette cases to rationalize the production of paper boxes. This machine is integrally assembled, transported and mounted, it can be put into operated in one day, and thus the cost is reduced. The precise assembly and high configuration make it better than Taiwan machines and competitive with Japan machines.
Main parameter:

Module way	Flattening
Maximum paper width	1070×790mm
Minimum paper width	400×380mm
Maximum die cut (including waste edge)	1060×760mm
The mouth blank	≥5mm
The knife line is high	23.8mm
Plate frame inner plate size	1090×790mm
Paper specifications	80~1000g /m2 (cardboard), 4mm (corrugated paper),
Maximum working pressure	300T
Maximum mechanical speed	7500s/h
Maximum height to paper	1600mm (including wood tray)
Maximum collecting paper height	1400mm (including wood tray)
Machine size	5600×4100×2300
Total mechanical weight	15T
Power of main motor	11kw
Total motor power	17kw
Gas source requirements	Pressure: 0.6-0.7Mpa, flow rate: 0.37m³ / min

WENZHOU WANDUN MACHINERY CO.,LTD. is located in the south of Zhejiang. We are a professional producer of PE air bubble film making machines, film blowing machines, bag making machines, stretch film machines, plastic laminating machines, printing machines, plastic recycling machines, and so on. We have a good team for the R&D, design and sale. Our engineers have more than ten years of experience in plastic industry. We can design the machines according to our clients' requirements. Our main markets are South America, Africa, the Middle East, the EU and Southeast Asia. More than 98% of our products are exported to overseas markets, such as Greece, Croatia, America, Columbia, Dominican Republic, Nigeria, Ethiopia, South Africa, Saudi Arab, Israel, etc. We also provide good after-sales services immediately. The quality and good service are our business principle. You are welcome to visit our factory to have business discussion. We wish we can have great business cooperation together. Q1. What is your terms of packing?
A: The normal package is making a pallet to protect the machine at the bottom and wrap the whole machine with plastic film packing.
If export to EUROPEAN countries,the wooden box will be fumigated. we use PE film for packing or pack it according to customers
special request.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the
quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
