Wamit 3000*2000mm 5 Axis 3D Cutting Igems Metal Carbon Steel Water Jet Equipment Cutting Machine

Product Description

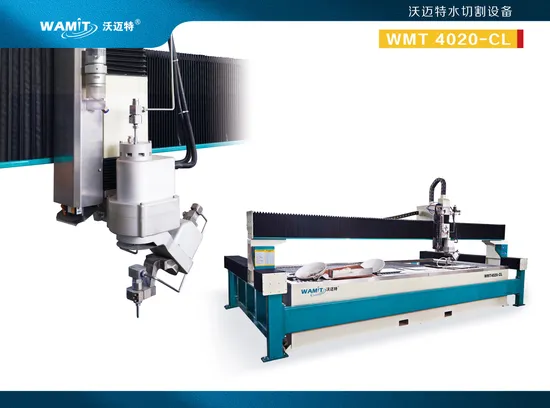

Feature of 5 axis
no obvious dot in dealing with sharp corners or continuous sharp corner,
Infinite rotation of the C-axis, high rotation speed, improve processing efficiency
Inclination +/- 60°of the A-axis
Technological parameters

A axis motion range	±70°
C axis motion range	infinite
Positioning accuracy	1.5′
Rotating shaft max. speed	50RPM
Fixed cutting point precision	±0.05mm
Turning radius	261mm

Strong structural rigidity
In the 420MPa high pressure water recoil force under the action of cutting points offset variation is less than 0.01mm
Small environmental thermal deformation
Under the change of temperature in the environment of 0-40ºC, the position shift of the cutting point is less than 0.01mm
C axis infinite rotation
C axis infinite rotation can eliminate the return trip to start and stop the high pressure water caused by cutting point hole
Three-dimensional cutting
Cutting function can be realized through a solid, cylindrical mosaic, surface cutting process
Excellent control system
By analyzing the pressure, the thickness of the work piece, the nozzle combination, the abrasive flow and other technological parameters, the mathematical model is established, intelligent calculation, automatic cutting
Support B spline and other complex curve processing, to ensure smooth and smooth movement process
Features such as automatic time delay valve control, parameter management and process database.
Support for automatic sorting, adding the lead cutter line, add a bridge and other graphics editing functions
To solve the problem of water jet inherent taper, to achieve accurate cutting.

Advantage:

1. we promise 2 years( 2500 hours) warranty always. and have got CE certificate
2. we use flow type cutting head, the cutting efficiency is at least 10% higher.
3. the abrasive sand hopper beside the cutting head is also flow design.
4. we have new technology that can make the machine moving speed is to 20-30m/min. normal speed is 6m/min as you see. if this technology used in pure water cutting, the cutting cost will reduce 50%. if using other materials cutting like glass , marble, steel, the cutting cost will also 20-30% reduced. but of course , the machine with this function price will be a little higher.
5. we use soft cover of the linear guider, can prevent dust away from the linear guider, so keep the linear guider keep precision longer.
6. we assemble an auto oil feeding to linear guider, so customer needn't maintenance the linear guider always.
7. seperated body.
8. we will send a remote control pendent.
9. we have the world most convenient abrasive sand removing system, in the video address, you can check the video. it can be used for any brand water jet cutting machine, maybe you can promote this system in your country and other countries. please check the attachment.
10. we also have one marble mosaic heat press machine, this is widely used in marble mosaic making factory, I don't know what's the situation of marble mosaic making in your country, in China , our this system sells good. please check the attachment.
11. we don't produce 300mpa and 380mpa pump, we supply 420mpa pump ,but as you see, the price of whole machine is not increased, we hope to provide better cutting feeling to customers.
12. we use variable pump, so can reduce electricity cost for customers.
13. we can do 220V and 415v also.
14. like height tracking system, positioning system , we can also provide.
15. all our components are SCHNEIDER brand
16. the motor and PLC are SIEMENS brand.
17. we can provide 5 axis with 10 degree and 3D 5 axis. we don't provide 4 axis, according to experience, 4 axis cutting head precision keeping time is too short, this will effect customer's using feeling.
18. use 10mm steel for water tank supporter and use 8mm steel for beam, keep the machine working more stable.
19. imported TAIWAN HIWIN ball screw and linear guider
20. imported USA intensifier and TAIWAN accumulator and high pressure assembly and low pressure assembly

Main technical parameter of water jet cutting machine
Intensifier Pump	Item	Parameter
	Model	WMT3742Z
	motor	SIEMENS
	Method of Direction Regulation	Electronic direction regulation
	Pressure Range	50-420MPA, continuous pressure is 330-380Mpa
	Maximum Flow of Hydraulic Pump	90 L/min
	Maximum Discharge Capacity	3.7 L/min
	Maximum Diameter of Gem Nozzle	0.33 mm
	Power of Master Motor	37 KW
	Power Source	380V/50HZ, also work at 220V/60HZ, 415V
Cutting Table	Item	Parameter
	X axis Characteristic	use strong 10mm steel, can use longer time. 3000mm cutting width. The cutting table width is 3200mm
	Y axis Characteristic	Cast iron is used as the foundation base , 2000MM CUTTING LENGTH . The cutting table length is 2200mm.
	Z axis Characteristic	Z axis double linear guide and four sliding block , 180MM, CAN DO 200MM
	Control Accuracy	±0.01mm, cutting accuracy is ±0.1mm, reposition accuracy: ±0.02mm, max travelling speed: 6000mm/min, we have new technology that can make the travelling speed 30m/min.
	linear guider	TAIWAN HIWIN BRAND
	Table Ctructure	Separated body, can be delivered by one 20'FCL container
	Driving Way	Servo drive system
	CNC system	Ncstudio ,Fagor
	Servo Motor	SIEMENS motor
	Cutting Head	Casting structure and Concrete structure
	Sealing Way	SOFT dustproof cloth on X,Y,Z axis, the sealing result will be better, and there is a oil tank under the cutting table, the linear guider no need maintainence.
	Loading Weight Water Tank	Wall thickness is 6mm,using fluorocarbon coating, Can antirust at least 5 years.
CNC Controller	Item	Parameter
	Control Method	CNC
	Display Size	21 inch LCD
	Model of Cutting Text	DXF
	Model of Computer	Industrial Control Computer
	Operating System	Windows 7/10
	PLC	SIEMENS
	Cutting Software Advantage	Auto save and transfer common parameter
	Controller Displace	Can be fit to suitable place at own will
Automitic Abrasive Feeder	Item	Parameter
	Founction	Sand storage and sand delivery
	Operating	No need electrocnic control,sample operation
	Capacity	200 kg for 8 -10hours
	Pressure	0.3-0.6Mpa compresses gas pressure
	Color	White
Deionization System	Item	Parameter
	Water pressure	0.15Mpa~0.6Mpa
	Water temperature	5°C~50°C
	Environment temperature	5°C~50°C
	Relative humidity	≤95%(25°C)
	Water turbidity	<20FTU
Wireless Handle		Parameter
	Founction	Wireless controlling waterjet
	Display	Real- time display condition of X,Y,Z axis
	Settings	Zero point, on/off valve set, X,Y,Z axis moving
	Technology	Advanced technology

OIL CHILLER
FAQ

1. What are the benefits of purchasing a water jet cutting machine comparing EDM, Laser, Plasma or Machine tool?

Requirements	Waterjet	EDM	Laser	Plasma	Machine Tools
Cost and time efficient	Yes	No	Yes	Yes	No
High tolerance, precise cutting	Yes	Yes	Yes	No	No
No burned edges, no HAZ	Yes	No	No	No	Yes
Multi-head cutting	Yes	No	Yes	No	Yes
Steel is over 150mm thickness	Yes	Yes	No	Yes	Yes
No distortion or discoloration	Yes	Yes	No	No	Yes
Nesting yield	Yes	Yes	Yes	No	No
Shiny, mirror finish	Yes	Yes	No	No	Yes
Brittle,soft or hard material	Yes	Yes	Yes	Yes	No
Stainless steel, copper, brass or exotic material	Yes	Yes	No	Yes	No
No toxic fumes, deposits, or carbon buildup	Yes	No	No	No	No
Environmentally friendly	Yes	No	Yes	Yes	No
