Density Gradient Column

Product Description

Product Description

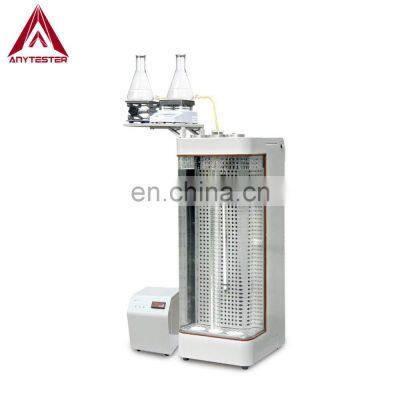

Product DescriptionAT410 Density Gradient ColumnAT410 Density Gradient Column (original model HY4930) is used to determine the density of the non-cellular plastic moulding and extrusion materials or the ultra-high-molecular-weight polyethylene (PE-HUHMW) moulding and extrusion materials by the density gradient column method. SpecificationModelAT410Density gradient columnDiameter: 50mmAccuracy: 1mmColumn range: 850mmTemp. control accuracy± 0.05℃Temp. uniformity±0.1℃Working position3 or customizedGlass floatDiameter: ≤6.5mmDensity accuracy: 0.001g/cm3Power supplyAC380V 50Hz, 0.3KW, three-phaseDimensions of main machineDimensions: 400×450×1050mm (L×W×H)WeightApprox. 80kgDetails and Features★Modular design and embedded structure:The internal material of the constant-temperature bath is made of high transparent resin material of 8mm in thickness and embedded in the metal casing, excellent heat preservation, high transparence, strong resistance to vibration and deformation, beautiful appearance and good exhibition. ★High precision control system:High-precision SCM to control temperature, with heating and cooling system;Split-type external-drive inner-spraying stirring method can not only ensure the temperature uniformity with ±0.1℃, but also effectively avoid the vibration of constant-temperature bath. ★Simple and convenient operation and complete configuration:Simple to operate and convenient to test with the complete configuration of wares required in tests, such as light liquid bottle, heavy liquid bottle, gradient column, glass float and magnetic stirrer. ★ Humanized design:With salvaging device to salvage specimen, glass float at the speed of less than 10mm/min, effectively ensuring no damage to the density gradient liquid during salvaging, omitting the process to prepare test liquid and enhancing the work efficiency. Our CompanyPacking&DeliveryPackage Packaging Details1. The equipment is covered with film is protect it from water vapour during the trip.2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.PaymentPayment Term T/TEXW 30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdDelivery Time7~10days after receiving payment for one containerContecting Us
