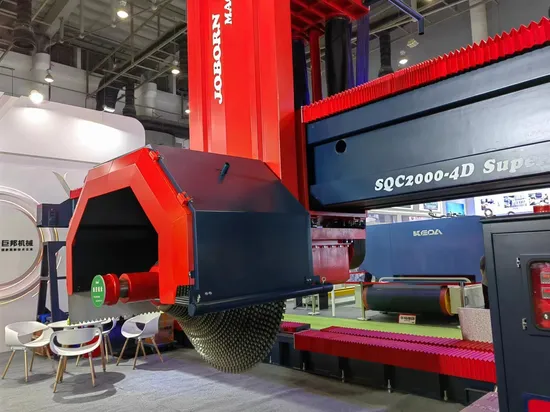

Super Block Cutting Machines Giant Disc Saw Machines Multi Blade Disk Cutter Machines for Granite

Product Description

Product Description:
JOBORN Super Block Cutting Machines Giant Disc Saw Machines Multi Blade Disk Cutter Machines for Granite, Super Efficiency Stone Cutting Machinery
JOBORN SQC1800/2200/2600/3000-4D Super Block Cutting Machine. This series machine adopts microcomputer control system and human-machine interface, uses inverter to control left-right feeding, adjusts the speed according to the stone material. It uses hydraulic lifting system , combination of chrome-plated guide pin and wear guide bush, with small gap , wearable, beautiful structure , and guide sleeve with multi-layer seals , with waterproof , dust-proof , anti-spill , improving the service life, main motor uses brand energy-efficient motor, reduces the later using cost; forward-backward automatic slicing uses high-precision screw nut driving, main spare parts adopt imported good-quality materials; The block can be placed in the ground directly to save worktable and its maintenance costs; thus the whole machine is featured as high cutting efficiency, high slicing precision, and flatness of plate after cutting, high stability, easy-operating to suit specially cutting granite and marble block with high value and big size.
Features: 1.Taiwan famous hydraulic system.The hydraulic components from Taiwan first-line brand,react more quickly,works more stable.
2.Domestic premium brand main motor with high efficiency and more energy saving,make the cutting more powerful,and saving electricity more.
3.Germany Siemens inverter, feeding more stable; imported or domestic famous brand electrical components, with lower failure rate, help you to worry less and save more labor.
4.Side-beam rails use slide V-rail, contacting area is large, not easy to shake when cutting, ensure the plate/slabs are flatness after cutting; meanwhile,the forward and backward slicing take high precision screw-nut transmission, have automatic slicing fuction.
5.It uses hydraulic lifting system, combination of chrome-plated guide pin and wear guide bush, with small gap, wearable, beautiful structure, and guide sleeve with multi-layer seals, with waterproof, dust-proof, anti-spill, improving the service life.
6.Revolving working platform (Optional)
Taiwan famous brand hydraulic system
Domestic first-line brand efficient energy saving main motor
Humanized human-computer interaction interface
Imported and domestic premium brand electric components
The side beam track adops sliding V rail
Four guide column,double hydraulic lifting
Rotary working platform(optional)
Processing Display:
Technical Parameter:

SQC1800/2200/2600/3000-4D Super Block Cutting Machine (max 32 blades)
Appellation	Unit	SQC1800-4D Super	SQC2200-4D Super	SQC2600-4D Super	SQC3000-4D Super
Max.Diameter of saw blade	mm	Φ1800	Φ2200	Φ2600	Φ3000
Max.processing length	mm	7200	6800	6400	6000
Max.processing width	mm	6000
Max.lifting stroke	mm	1350
Power of main motor	kW	110/132
Total power	kW	128/150
Water consumption	m³/h	20
Dimension(LxWxH)	mm	11500x9000x3700(base to peak)
Weight	kg	33000

Processing Spot:

FAQ:
Q: Are you manufacturer ? A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service. Q: Can I get a machine according to my own requirements? A: Sure. Welcome OEM and ODM orders. Q: This is the first time I use this kind of machine, is it easy operate? A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well. Q: What's your MOQ and delivery? A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you. Q: How is your after sales service? A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance. Q: If my machine is broken. Can you repair it for me? A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.
