Galvanized Sheet Metal Roofing Used Steel Decking Floor Tile Making Machine Price

Product Description

Galvanized Sheet Metal Roofing Used Steel Decking Floor Tile Making Machine Price

1. Processing flow diagram of machine:
Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table
2. Profile Drawings for Reference:
3. Technical parameters for Galvanized Sheet Metal Roofing Used Steel Decking Floor Tile Making Machine Price :

Article No.	Item Name	Specification
1	Width of feeding material	1000 mm coil sheet
2	Thickness of feeding material	0.3-0.8 mm coil sheet
3	Roller station	13 stations
4	Shaft Diameter	75 mm
5	Productivity	8-15 m/min
6	Rollers' material	45# steel with 0.05 mm chrome
7	Shaft material	45# steel with 0.05 mm chrome
8	Weight	6.5 tons
9	length	5.5 m
10	Voltage	380V 50Hz 3phases
11	Control	PLC
12	Decoiler	5 tons
13	Motor	5.5 kw
14	Driving way	Chain transmission
15	Chain size	1 inch
16	Cutting system	Hydraulic cutter

4. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

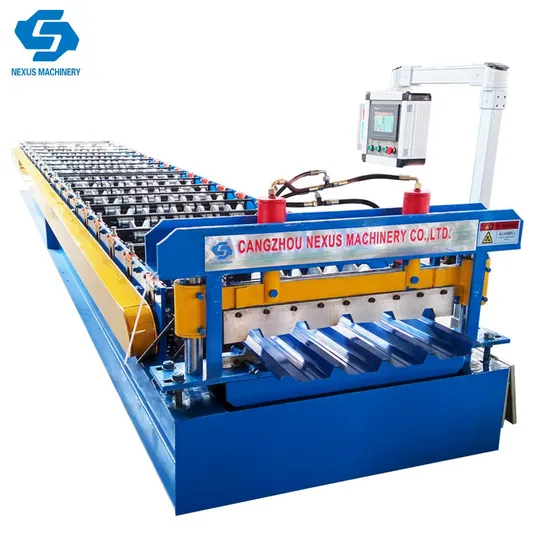

5. Photos of Galvanized Sheet Metal Roofing Used Steel Decking Floor Tile Making Machine Price for Reference:
ABOUT US:
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
