reinforcement bar locator/wall rebar scanner

Product Description

Product Description

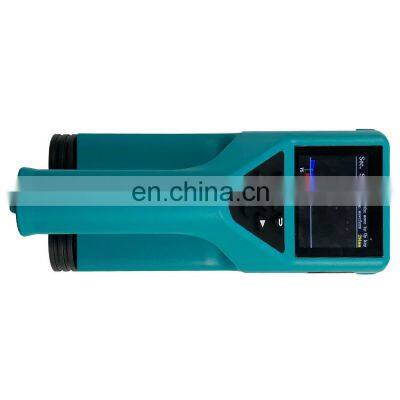

R800 Integrated Rebar DetectorProduct DescriptionThe integrated rebar detector is a portable non-destructive testing instrument, which can be used to test the construction quality of reinforced concrete structures. It can measure the position of rebars on the concrete surface detect the thickness of the steel protective layer and the diameter of the rebar. In addition, it can also magnetize the inside of the concrete structure. The position of the body and the conductor are detected, such as the internal cable of the wall and the plumbing pipe. The pre-construction detection can effectively avoid damage to these facilities during construction and reduce accidents.ParametersProduct nameIntegrated Rebar DetectorModel NumberR800Small range1-90mmWide range1-210mmPowder supplylithium batteryWeight4.5KGPackage size360*175*305mmMain Features 1.Style design, compact size, light weight, easy to carry, new upgrade wireless cloud transmission function, laser precise positioning of steel bar position;2.Thickness detection mode is intuitive, showing thickness and steel spacing at the same time.3.Thickness detection mode can automatically store thickness and spacing, which greatly improves the detection efficiency. Waveform scanning mode shows the distribution of reinforcing bars intuitively, and it is more intuitive to detect and analyze dense reinforcing bars.4.The waveform scanning mode also shows the thickness and spacing of the rebarprotective layer.5.It can detect the middle position of the two reinforcing bars, the aiming frame and the indication light, so as to facilitate drilling and coring.6.The instrument automatically stores the calibration value, realizes fast measurement andavoids the trouble of each calibration.7.Boundary-free mesh/profile scanning, the length of waveform scanning can reach 6m at atime.8.TF card storage, large capacity, intuitive and convenient transmission;9. 2.8 inch high resolution color liquid crystal screen;10.PC professional data analysis software, data processing and report generation can be easily completed.ApplicationContact USCangzhou Lovely Group Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 10 years, With advanced technologies and best customer service, Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.Our Customers and patent certificatePacking & DeliveryWhy Choose us ?get our in-time reply via email or telephone or instant messenger;get best product with excellent quality and competitive price;One year guarantee for whole machine 24 hours technical support by email or calling teach you to install and operate,always enjoy our considerable & full-side after-sales service; feel very convenient since we can help you sourcing and ship products from different factories via one shipment, which to a large extent save your time and cost; easily make the payment via West Union, Paypal, T/T for small value order;
