5 1/2 Digits SA5053 Digital Multimeter with 4.3 Inch LCD Touch Screen

Product Description

https://suininstrumentscoltd.en.made-in-china.com/product-list-1.html
Features:
* Real 5½ digits readings resolution (119999 counts).
* 1 μV resolution
* True-RMS AC Voltage and AC Current measuring.
* 4.3-inch color LCD touch screen with double display for easy viewing.

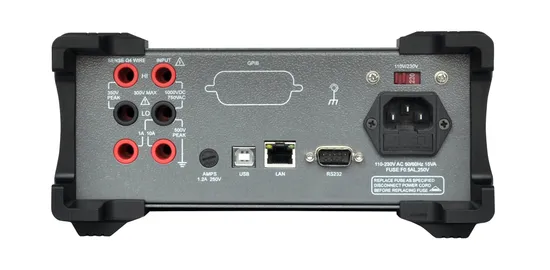

* Two sets of input interfaces front and rear, which provides convenience to arrange wires.
* In addition to numerical data display, it also features histograms, trend charts, bar charts, and statistics functions.
Specifications:

	5 1/2 digits
Basic Function	Range	Best Accuracy ± (% reading + % range)
DC Voltage	100mV/1V/10V/100V/1000V	± (0.012 +0.005)
AC Voltage	100mV/1V/10V/100V/750V	± (0.2 + 0.1)
DC Current	100µA/1mA/10mA/100mA/1A/10A	± (0.05+0.007)
AC Current	100µA/1mA/10mA/100mA/1A/10A	± (0.5+0.1)
Resistance	100Ω/1KΩ/10KΩ/100KΩ/	± (0.03+0.005)
	1MΩ/10MΩ/100MΩ
Capacitance	1nF/ 10nF/ 100nF/1µF/10µF/100µF	± (0.2+0.5)
Frequency	5Hz-1MHz	± 0.02
Temperature	- 200ºC~ 800ºC	± 0.2ºC(without accuracy of probe)
Features
Reading Rate	500 reading/s
Auto Range	√
Diode	√
Continuity	√
Trigger	√
Save/Read	√
Math	MAX/MIN,Rel,dB, dBm,Limit,Statistic
General Characteristics
Safety	IEC61010-1: 2001, CAT I 1000V/CAT II 600V, Class of pollution: 2
Interface	USB Host, USB Device,RS-232,LAN, GBIP (optional)
Power	115 V/230 V (1±10%), 50 Hz/60 Hz, 15 VA
Dimension & Weight	256х106х322 mm, 3.5 kg
