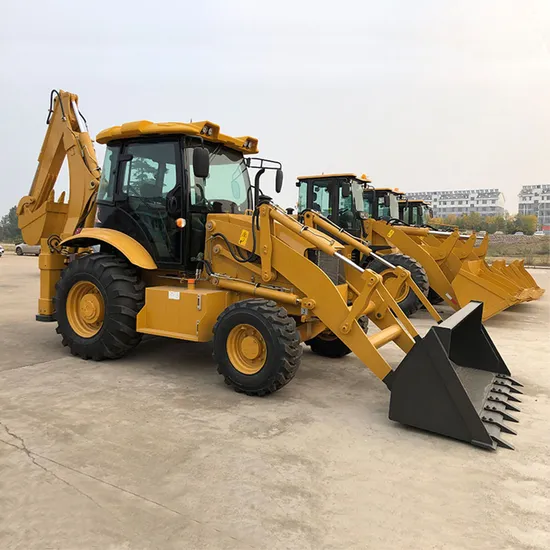

2.5 Ton Backhoe Loader with a Leg Equipped with Reversing Camera

Product Description

2.5 Ton Backhoe Loader With A leg Equipped With Reversing Camera
2.5 Ton Backhoe Loader With A leg equipped with Eaton steering gear and priority valve, reversing camera, rear digging hammer line, A-legged as standard Load Capacity :
2500kg Operating Weight :
7600kg Bucket Capacity :
1.0/0.3m³ ODM/OEM :
SUPPORT


2.5 ton Backhoe Loader Characteristics

1.The joystick operation steering and priority valve are designed to give the operator greater control over the direction and speed of the machine.
2.The reversing camera allows the operator to view what is behind them while they are driving, helping them to avoid any potential hazards and maneuver more easily in tight spaces.
3.The rear digging crusher line is designed to break up hard materials such as rocks and concrete, making it easier for the operator to dig or move materials.
4.The Xuzhou Azi tires are 19.5L-24 in size and come standard with A leg, although H leg can be optionally added for additional stability.
5. The wide view cab provides a clear and unobstructed viwe of the job site, helping operators to work more efficiently and safely.
6. The backhoe loader equipped with adjustable suspension seat, providing maximum comfort and preventing fatigue during long periods of operation.
2.5 ton Backhoe Loader With A leg Technical Parameters

Model	NST388
operating Weight	8200kg
Overall Dimension	6150x2250×3763mm
wheel base	2264mm
Min. Ground Clearance	30omm
Modell of steering system	BZz5-250
Steering angle	± 36°
Mini turning radius	6581mm
Pressure of the system	12MPa
Breakout Force	38KN
Loading lifting capacity	2500kg
Front Bucket Capacity	1.0 m3
Bucket Dumping Height	2650mm
Bucket Dumping Distance	1025mm
Digging Height	3878mm
Backhoe Capacity	0.3cbm
Max. Digging Depth	4085mm
Single angle of excavator grab	190°
Max. pulling force	39KN
Loading Hydraulic System	16MPa
Digging Hydraulic System	18Mpa
Brand	Carraro - ltaly
Driving Axle Load Capacity	4/18.5T
Rated Dynamic/static load of front axle	9T/22.5T
Rated Dynamic/static load of rear axle	7.5T/18.75T
Brand	Duetz WP4G95E221
Type	lnline Direct lnject Turbocharged
No.of Cylinder-Bore/Stroke	4-105x130
Rated Power	7okw/95HP
Max. torque	380 N.m/1400~1600rpm
Displacement	4.5L
Rated Speed	2200r/min
Min.Fuel Consumption	230g/Kw-h
Gearbox	TLB14WD
Type	Fixed Shaft Power shift/Electric Control
Max.speed	38Km/h
Size	14-17.5/19.5L-24
Service brake	wet internal self-regulatic self-balance type
Parking brake	Spring brake/hydraumatic terminating brake
Digging power of excavator grab	46.5KN
Digging power of dipper	31KN

With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.

Attachments & Applications
LTMG offers a diverse selection of attachments for backhoe loaders, ensuring that customers' specific requirements are met across various applications. Our extensive range includes a tree spade, auger, 4-in-1 bucket, pallet fork, grass grapple, wood grab, and more. These attachments are meticulously designed and engineered to deliver optimal performance and functionality, catering to a wide array of customer needs.
