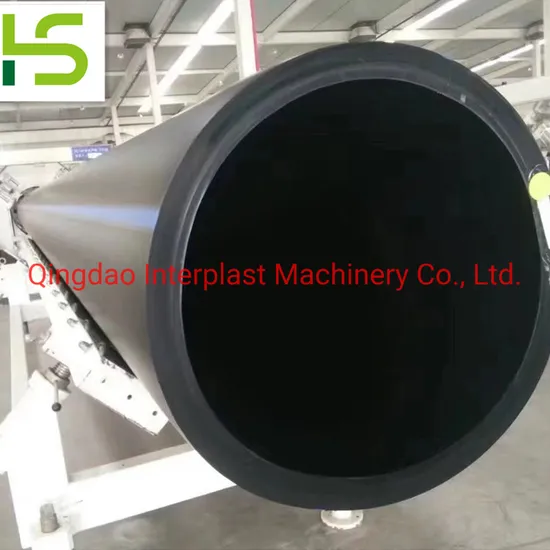

High Efficiency, Energy Saving Plastic PE Pipe Extrusion Machine/Interplast Machinery

Product Description

High Efficiency, Energy Saving Plastic PE Pipe Extrusion Machine/Interplast Machinery
HDPE Plastic Water Supply Pipe Extrusion Line adopt high speed extruder with high efficient,energy saving. The extruder have water recycled inside with metering material loading device;
The single-screw extruder and the traction machine adopt imported AC frequency conversion speed regulating device, and the vacuum pump and traction motor are all made of high quality products. The tractor is driven by two claws, three claws, four claws, six claws, eight claws, ten claws, and twelve claws. Available with chipless cutting, saw blade cutting or planetary cutting, the unit has reliable performance and high production efficiency.
110-315mm Machine Consist of:
1,90/38 High efficient single screw extruder: Adopting alloy screw, high efficient
2,Die and mould: Adopting 45Cr steel forming, inside fan system
3,Vacuum calibration tank: 9m length
4,Cooling tank 2 sets: 6m length to guarantee the cooling
5, Cutting machine: chippless cutter
6,Stacker: with rubber rollers to convey the finish pipe;
7,Computer spray code machine: as choice
8,Chiller: as choice
Parameter

Model	ITPE-75	ITPE-160	ITPE-250	ITPE-315	ITPE-630	ITPE-800
Main extruder	SJ-60*38	SJ-75*36	SJ-75*38	SJ-90*36	SJ90*38	SJ-120*38
Auxiliary mode	SJ-30*25	SJ-30*25	SJ-30*25	SJ-30*25	SJ-45*30	SJ-45*30
Diameter Range	16-75	75-160	90-250	110-315	315-630	500-800
Output	200	300	400	500	900	1200
Production Speed	1-20	0.5-12	0.2-6	0.2-4	0.06-3	0.05-2
Total installed capacity	110	180	250	280	430	600

110-315MM HDPE Plastic Pipe Extrusion Machinery
SJ-90/38 Single Screw Extruder with Gravimetric Feeder
110-315mm Die head: Using the die head to manufacture ABA type ,AB type three layers and two layers HDPE pipe;
110-315mm Vacuu calibration tank and cooling tank: SS304.
110-315MM Haul-off Machine:Snychoronized and controled by extruder PLC system; Individual controlled by manual also.
Chipless Cutting Machine
Finish Pipe Conveyor
20-110mm HDPE pipe production machinery
20-110mm Die Head with Mark Line Extruder
Laser Ink Printer
20-110mm Two Caterpillars Haul-off and Chipless Cutting Machine
500-800mm HDPE pipe production machinery
Pre-Sale and After-Sale Service:
1. Provide all the machines for the complete production according to customer's requirements.
2. Provide complete service for factory layout and other information to help customer to build the factory.
3. Provide the raw material to the customer if need.
4. Provide good service for machine installation and training, until the customers can run the machines and make stable production.
5. Provide after-sell service for all the life, except one year quality guarantee,
6. Provide good quality, good price and good service to customer. We are the professional and trustable supplier for turnkey projects. Let us do win-win business together.
1. Good components: Siemens Beide main motor, ABB inverter, Siemens low voltage electrics, Omron temperature controller
2. Good design and good outlook: We design the machine for easier operation and stable performance. The haul off machine and cutter is fully closed for safety purpose. Planetary socket is using in some machines for wire connection.
3. Our engineers and technicians have more than 10 years experince, they know pipe machine well and make good pipe machine.
Factory Show:
