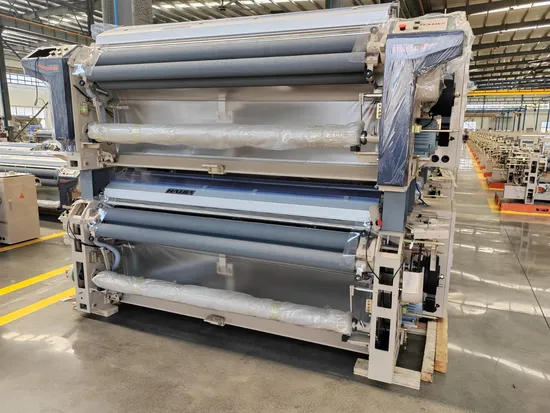

High Quality for Twisting Chiffon Fabric for Morocco Market Water Jet Weaving Textile Loom with Cam Shedding. (HW-6010-230 in Base of TSUDAKOMA ZW-508)

Product Description

Fabric Details Show

Machine Model
Water Jet Loom:
HW3851; HW3873; HW6010; HW6012 ; HW8010
Air Jet Loom:
HA-N ; HA-9010
Machine Specification

Item		Standard specifications	option
Reed space	Nominal(cm)	150,170,190,210,230,260,280,320,340 360
	Neck in(mm)	0--600mm
Weaving scope	Weft Insertion Rate	1400-2200M/min
	Filament	8D-5000D
Weft selection		Single/Double /Three/Four Nozzle
Power		Super start motor, Direct drive Motor
	The motor rating(KW)	1.8, 2.2, 2.8, 3.0 , 3.7 ,4.0 , 4.2, 4.5
Weft insertion		Main nozzle, deputy nozzle together, use special reed	tensile
		Auxiliary main nozzle
		Deputy nozzle relay control
Shedding		Crank shedding
		Upper cam shedding
		Upper dobby shedding
Let off		Mechanical or Electronic
	Variable dis dia(mm)	800or 1000
Take up		Mechanical or Electronic
	The largest cloth diameter(mm)	φ520
	Weft density range	7.1-80.3 pick//cm(18-204pick/inch)
	Weaving length counting	Displayed on the keyboard display, with the function of scale parking
Beating-up		Crank type sley feet more beating -up mechanism
		Four linkage beating-up
Measuring weft Storage		Electric drum weft
Leno		Planetary gear type
Cutter		Mechanical scissors
Stop device	Weft stop	Reflex detector
	Warp stop		6 columns batching motion
	Other	Wring side,yarn end processing broken parking
	Fault display	Operating screen
		4 color indicator light display
Automation		The computer control system
		Monitoring and self diagnosis function

Company Overview
Founded in 1995, Haijia Machinery is a professional manufacturer of shuttleless looms in China integrating R&D, manufacturing, sales, international trade and services. The main products include "Haijia" brand HW series water jet looms and HA series air jet looms. After the appraisal by China Textile Machinery Association, the technical level of water jet looms produced by Haijia Machinery has reached the international advanced level, and the market share has been leading the world for many years.
The company adheres to the corporate mission of providing customers with competitive weaving solutions and services, and continues to create value for customers. With the responsibility of revitalizing national brands, it will surely become a world famous brand in the Chinese loom industry.
The Workshop in Our Factory Introduction
Advanced CNC Workshop
The company is equipped with advanced CNC equipment, high-precision imported processing center, and adopts information management methods to achieve independent precision machining of precision parts of key parts of the loom. The processing accuracy of key parts and components reaches 0.01mm,greatly improving the whole machine Stability and startup efficiency.
Three Dimensions Warehouse
The company is equipped with an automated three-dimensional warehouse, which uses computers to accurately manage the goods information, reducing possible errors in the process of storing goods and improving work efficiency. At the same time, the three-dimensional automated warehouse realizes motorization in the transportation of goods in and out of the warehouse, which is safe and reliable in handling goods, and reduces the damage rate of goods in the process of handling.
Quality Detection Workshop
The company adopts advanced calibration and testing equipment to ensure the qualified rate of products produced in each process and strictly control the quality fluctuation, so as to ensure the product quality of the whole machine. Improve the production process through inspection, reduce the quality cost and enhance the comprehensive competitiveness of products.
Advanced Spraying Workshop
Our spraying workshop adopts the same electrophoretic spraying technology as Tsudakoma, and is equipped with product automatic spraying production line and spraying robot independently developed by the company. The use of the new equipment can make the workpiece surface evenly and completely covered with a protective paint film, so as to ensure that there will be no incomplete paint film coverage and uneven paint film thickness. At the same time, the application of electrophoretic spraying technology significantly improves the anti rust and anti-corrosion ability of the workpiece. The service life of the loom is greatly improved.
Advanced Assembly Workshop
On the basis of the whole machine assembly line, the company introduced Siemens to intelligentize the loom assembly, and realized the "mobile people do not move" production mode, that is, the pulsating production mode. Through strict quality management, fine differentiation of assembly process flow, fastening connectors with special tools with fixed torque, and strict inspection of production facilities, the quality of the overall loom is improved.
Customer Representative
Exhibition Site
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE,ISO
3: What about the delivery time?
A: 30-45 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment.
5. What about the Minimum Order Quantity?
A: The MOQ is 6 pcs
