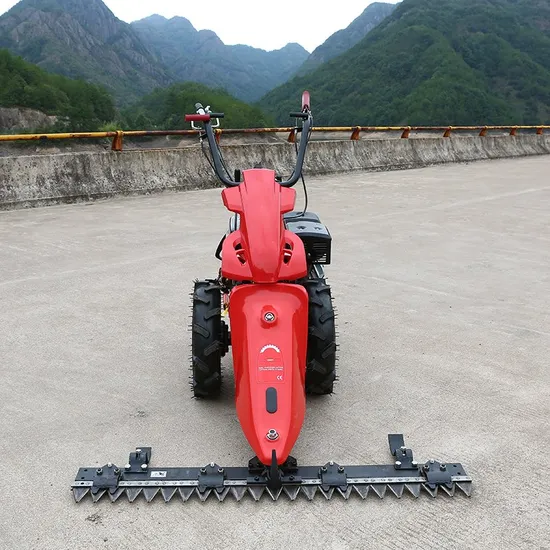

Wheat Rice Harvester Silage Corn Sorghum Forage Harvester Straw Reed Reaper

Product Description

Product Description
Agricultural Machine Rice and Wheat Alfalfa Reaper


1.Power:15hp gasoline engine or 10HP diesel engine available
2.Start method: electric start&recoil start
3.Weight: 120kg.Gears: 3 forward, 3 reverse
5.Handlebar: adjustable in height and sidewise in different positions.It can be orientated of 180° 6.Wrking speed:forward: 1.18,2.76,12.67km/h reverse:1.24,2.91 km/h
7.Wheel Size:4.0×10.0
8.Transmission: all gear drive and direct power transmission
9.Lubricating system:oil bath lubrication
10.Clutch type: Dry clutch
11.P.T.O.:990rpm at 3600rpm of the motor
12.Gear ratio:264.2:1 112.9:1 24.5:1
13.Size:108*93*76cm

Model of power tiller			HR121-1	HR151-1	HR181-1	HR201-1	HR221-1
Start			Hand start or Electric start(key start)
Structure Weight (kg)	Without rotavator		360	371	371	396	401
	With rotavator		490	515	515	540	545
Turning speed of rotaotilling shaft(Rpm)	Low		188	188	188	188	188
	High		300	300	300	300	300
Overall dimensions (L X W X H)(mm)			2680x960x1250	2680x960x1250	2680x960x1250	2680x960x1250	2680x960x1250
Number of blades(Pcs)			18	18 or 22	18 or 22	28 or 30pcs	28pcs,30pcs
Rototiller width(mm)			600	600/900	600 /900	1000	1000
Type of tractor			Single axle, dual -purpose for both tractor and drive
Traveling Speed(km/h)	Forward		1.4 ,2.5 , 4.1 ,5.3 , 9.4 ,15.3
	Reverse		1.1 3.8
Tyre size			600-12	600-12	600-12	600-12	600-12
Wheel track(mm)			800,740,640 580 (normally use 800)
Min.ground clearance(mm)			185
Min.turning radius(m)			0.9(with no rotavator)
Model of engine			ZS195NL	ZS1100NL	ZS1105NL	ZS1110NL	ZS1115NL
Bore x stroke(mm)			95x115	100x115	105x115	110x115	115x115
Total displacement(L)			0.815	0.903	0.996	1.093	1.194
Compression ratio			17:1
Turing speed of crankshaft			2200
1-hour rated output(kw/hp)			10.6kw/14hp	12.1kw/16hp	13.2kw/18hp	14.7kw/20hp	16.17kw/22hp
12-hour rated output(kw/hp)			8.82kw/12hp	11.03kw/15hp	11.76kw/16hp	13.23kw/18hp	14.7kw/20hp
Specific fuel consumption(g/kw.h)			≤244.8	≤244.8	≤244.8	≤244.8	≤244.8
Specific lube oil consumption(g/kw/h)			≤2.00	≤2.00	≤2.00	≤2.00	≤2.00
Cooling model			Condenser( with radiator)
Package			Engine by plywood box, chassis by wear foam .
Quantity/20GP or 40HQ			30PCS/50PCS	30PCS/50PCS	30PCS/50PCS	30PCS/50PCS	30PCS/50PCS

Qingdao Henry Industry Co.,Ltd.,
Our company is located in the west coast of beautiful port city - Qingdao, where there are elegant scenery and limitless business chances. It is close to the sea port, and airport,train station, enjoying very convenient transportation. We are one of the leading manufacturer in Shandong china for agricultural machineries and industry protect products. its total
assets of RMB 1 billion , employee over 1500. Including agricultural machinery ,rubber products, gloves. The farm machinery main
including : Single cylinder diesel engines, two wheel tractors ,mini tillers(diesel engine and gasoline engine), four wheel
tractors ,trailers ,rice planters and harvester machinery, and kinds of farm Accessories and so on.
WELCOME TO VIST US AT ANY TIME !
