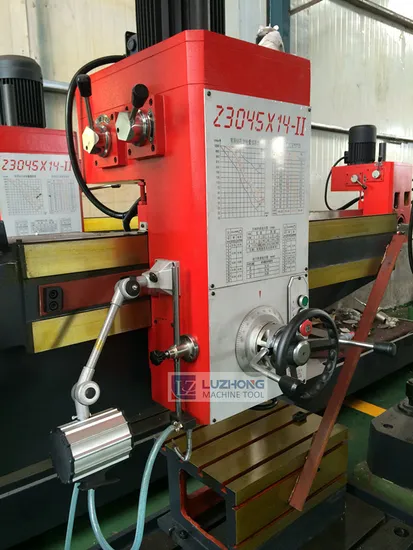

Hydraulic Metal Stand Power Z3050X14/II Radial Arm Drilling Machine with price
Basic Info.
Model NO.
Z3050X14/II
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
50-100mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Hydraulic Metal Stand Power Z3050X14/II Radial Arm
Max. drilling diameter
50mm
Distance from spindle nose to table surf
300-1210mm
Distance from spindle axis to column sur
330-1290mm
Spindle travel
210mm
Spindle taper
MT5
Spindle speeds range
78,135,240,350,590,1100rpm
Spindle speed steps
6
Spindle feeding range
0.10-0.56rpm
Spindle feeding steps
6
Main motor power
4kw
Transport Package
Plywood Case
Specification
2170*950*2450mm
Trademark
Luzhong
Origin
China
HS Code
8459290000
Production Capacity
150
Product Description
Hydraulic Metal Stand Power Z3050X14/II Radial Arm Drilling Machine with priceProduct Description
The main performance characteristics:
Mechanical transmission
Electricity clamping
Mechanical speed
Electricity take-off and landing,spindle promotion and inversion
Automatic feed Product Parameters
Product main technical parameters:
| SPECIFICATIONS | Z3050×14/II |
| Max.drilling dia (mm) | 400 |
| Distance from spindle nose to table surface (mm) | 300-1210 |
| Distance from spindle axis to column surface (mm) | 330-1290 |
| Spindle travel (mm) | 210 |
| Spindle taper(MT) | 5 |
| Spindle speeds range(r.p.m) | 78,135,240,350,590,1100 |
| Spindle speed steps | 6 |
| Spindle feeding range(mm/r) | 0.10-0.56 |
| Spindle feeding steps | 6 |
| Rocker rotary angle (°) | ±90° |
| Main motor power( kw) | 4 |
| Movements motor power (kw) | 1.5 |
| Weight (kg) | 2300 |
| Overall dimensions (mm) | 2170×950×2450 |
Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
