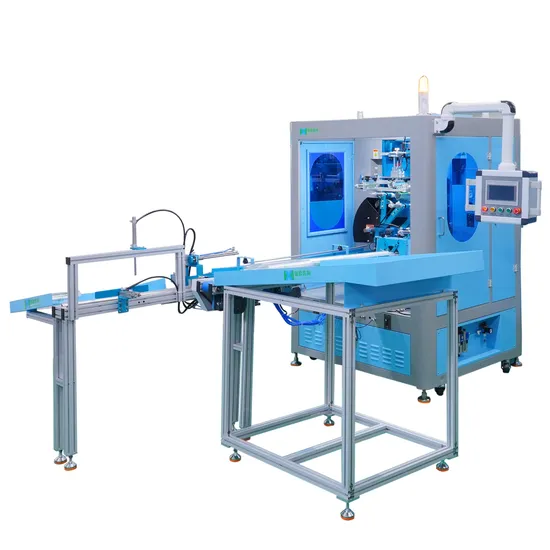

Silk Screen Printing Machine for Printing Paper Cup
| US$18,600.00-21,800.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HX-1SR-LED
Type
Automatic Screen Printing Machine
Style
Screen-process Printing Press
Structure
Rotary Printing Press
Color & Page
Single-Colour Printing Press
Application
Packaging Printing
Print Interface
No Need
System Supported
No Need
Workstations
8 PCS
Print Diameter
100mm
Max Product Height
200mm
Drying System
LED UV
Control System
PLC + HMI
Loading System
Automatic by Motor with Vacuum
Unloadaing System
Automatic by Vacuum
Applied
Coffee Bottles, Pet Bottles, Paper Bottles, etc
Transport Package
Plywood
Specification
390*200mm
Trademark
HX
Origin
China
HS Code
8443192290
Production Capacity
100 Sets / Year
Packaging & Delivery
Package Size
260.00cm * 185.00cm * 220.00cm
Package Gross Weight
1200.000kg
Product Description
Silk Screen Printing Machine for Printing Paper CupTechnical Parameters:
| Max. Speed | 4000 - 4500pcs/hr |
| Printing Size | 350mmX200mm |
| Printing Diameter | 50mm ~ 150mm |
| Printing Diameter ( 360 degrees printing ) | 100mm |
| Printing Product Length | 200mm |
| Transverse Driven | Servo Motor |
| Turntable Driven | Servo Motor |
| 360 degrees Driven | Servo Motor |
| RGB Sensor Search Driven | Servo Motor |
| Number of Print Head | 1 pc |
| Number of Corona Treatment System | 1 pc |
| Number of LED UV System | 1 pc |
| Workstations: | 8 PCS |
| Electrical Requirement | 220V 1 Phase | 50/60Hz | 20A | 7KW |
| Air Consumption | 5-7bar 100 L/min |
Specifications:
1) Fully automatic, no need person to operate;
2) Locating automatically to keep printing precision;
3) No product no printing system, keep printing stable;
4) High and strong vacuum system for loading & UN-loading;
5) PLC and touch screen control system. Digital control system, can set parameter randomly, operate easily with big function;
6) The four angle of screen frame holder can be adjusted, keep the balance between screen frame and products, also make sure the layer of printing ink is even;
7) Printing angle, printing pressure and screen distance are easy to set. The change of squeegee and flood bar is controlled by precision guide, keeping the vertical precision, working smoothly;
8) With emergency switch to keep safe and stable;
9) Locating several workstations by Taiwan precision rotary locating with stable, fast, improving efficiency;
10) The loading system is rotary type with vacuum, keep fast and stable loading;
11) With optical sensor for multi colors printing;
