Thermal Imaging Binocular Wolf30|Wolf60 Good Service China
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
Wolf30|Wolf60
Type
Uncooled Fpa, Binocular
Magnification
10X
Function
Waterproof, Fogproof, Night Vision
Usage
Bird Watching/Hunting
Structure
Catadioptric Telescope
Lens Type
Zoom Lens
Encapsulation
IP67
Vibration& Shock
Mil-Std-810f
Storage Card
32g
Item
Wolf30|Wolf60
Specification
183mm*138mm*76mm(without eyepiece)
Trademark
ULIRVISION
Origin
China
Production Capacity
5000 Pieces/Years
Product Description

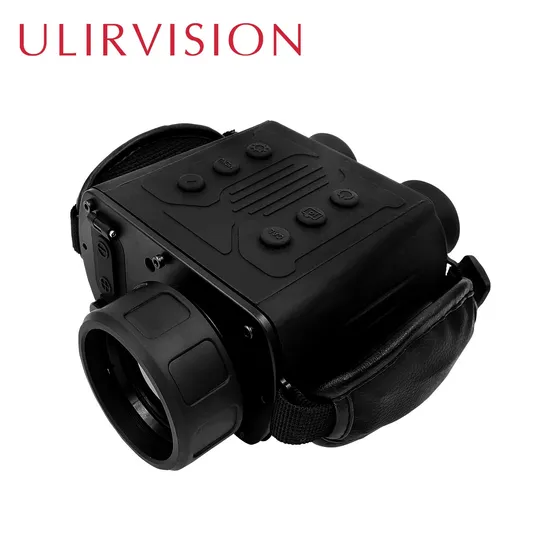

Product Description Wolf30|Wolf60 as high-quality thermal binoculars, can detect various targets in any harsh environment. They have been widely used in the night observation and surveillance.
| Item | Wolf30 | Wolf60 | |||
| Detector Data | |||||
| Type | Uncooled FPA | ||||
| Material | aSi | ||||
| IR resolution | 384×288 | 640×480 | |||
| Pixel pitch | 17μm | ||||
| Spectral range | 8~14μm | ||||
| NETD/Sensitivity | ≤70mK | ≤60mK | |||
| Lens Data | |||||
| Focal distance | 50mm | 75mm | 50mm | 75mm | |
| FOV | 7.5°×5.6° | 5.0°×3.7° | 12.4°×9.3° | 8.3°×6.2° | |
| Recognition distance(Vehicle) | 1200m | 1600m | 1200m | 1600m | |
| Recognition distance(Human) | 420m | 600m | 420m | 600m | |
| Eye relief | 22mm | ||||
| Diopter | -5~+5 | ||||
| Image Performance | |||||
| Display | 800×600 binocular OLED | 1024×768 binocular OLED | |||
| Polarity/LUT mode | Black hot/White hot | ||||
| Frequency | 50Hz | ||||
| Focus mode | Manual | ||||
| Noise reduction | Digital filtering | ||||
| Digital zoom | 2X ,4X | 2X, 4X | |||
| Image enhancement | Manual | ||||
| Startup time | 4s | ||||
| Contrast/Brightness | Manual | ||||
| Compass | No | Yes | |||
| Interfaces | |||||
| Format | Composite aviation plug | ||||
| Power interface | Yes | ||||
| Video output | PAL | ||||
| Storage card | 32G | ||||
| Power System | |||||
| Battery type | 2pcs 18650 lithium batteries | ||||
| Operation time | ≥6h continuous(normal temperature) | ≥4.5h continuous(normal temperature) | |||
| Environment Parameters | |||||
| Operating temperature range | -20ºC~+50ºC | ||||
| Storage temperature range | -45ºC~+70ºC | ||||
| Encapsulation | IP67 | ||||
| Vibration& Shock | MIL-STD-810F | ||||
| Physical Data | |||||
| Size | 183mm×138mm×76mm(without eyepiece) | 195mm×140mm×90mm(without eyepiece) | |||
| Weight | <1.2kg(50mm lens with battery) | ≤1.3kg(75mm lens with battery) | |||
| Packing | |||||
| Standard | Thermal imaging binocular, 4pcs batteries, Charger, Composite output cable, Warranty card, User manual, Certificate, Transport case | ||||
