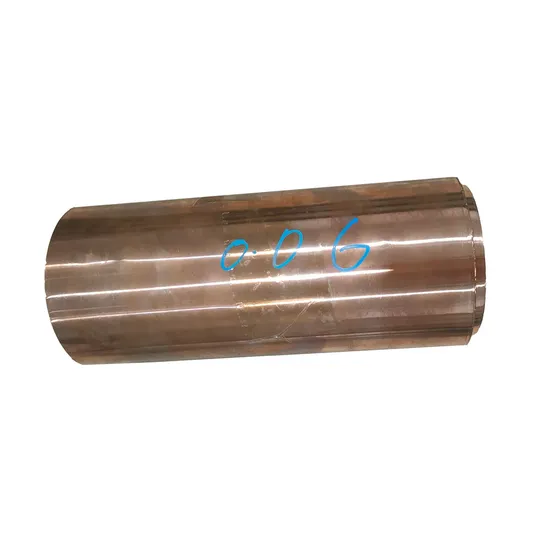

0.15X20mm 1/2h Copper Beryllium Tape C17200 (Alloy 25) Strip

Product Description

Product Description C17200 / QBe2 / Beryllium Copper Alloy Foil Strip / tape in Coils Physical Properties Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980 °C
Note:
1). the units are based upon Metric.
2). the typical physical properties apply to age hardened products. Applications: 1). Electrical Industry: Electrical Switch and Relay Blades
2). Fuse Clips, Switch Parts, Relay parts, Connectors, Spring Connectors
3). Contact Bridges, Belleville Washers, Navigational Instruments
4). Clips Fasteners: Washers, Fasteners, Lock Washers
5). Retaining Rings, Roll Pins, Screws, Bolts Industrial: Pumps, Springs,
6). Electrochemical, Shafts, Non Sparking Safety Tools, Flexible Metal Hose,
7). Housings for Instruments, Bearings, Bushings, Valve Seats, Valve Stems,
8). Diaphragms, Springs, Welding Equipment, Rolling Mill Parts,
9). Spline Shafts, Pump Parts, Valves, Bourdon Tubes, Wear Plates on Heavy Equipment. More Products: More range of copper and copper alloys, in full series of shapes: Sheet, Rod, Pipe, Strips and Wire list as below:
C17000/170 (CuBe1.7, 2.1245, Alloy165)
C17200/172 (CuBe2, 2.1247, Alloy25)
C17300/173 (CuBe2Pb, 2.1248, AlloyM25)
C17500/175 (CuCo2Be, 2.1285, Alloy10)
C17510/1751 (CuNi2Be, 2.0850, Alloy3)
CuCoNiBe (CuCo1Ni1Be, 2.1285, CW103C)
C15000,/150, C18000/180, C18150/181, C18200/182
CuZr, CuNi2CrSi, CuCr1Zr, CuCr

Product Name	0.08-2mm Thickness Alloy 25 Beryllium Copper strips
Material	Beryllium Copper Alloys
Composition	Be 1.86% Co+Ni 0.265% Fe 0.06% Co+Ni+Fe 0.325% Cu Balance
Shape	Roll//Strips/coils
UNS/CDA	UNS: C17200, CDA: 172
ASTM	B194
AMS	4530, 4532
RWMA	Class 4
Temper	A(TB00), 1/4H(TD01), 1/2H(TD02), H(TD04)
