High Speed Precision CNC Machine, Milling for Hard Metals and Alloys

Product Description

Introducing our hot-selling marvel: the High Speed High Precision 3/4/5 Axis CNC Milling Machine, a pinnacle of innovation poised to revolutionize your machining processes!
Product Description
Model: TZ-V855 This line rail vertical machining center represents a new era in CNC machine tools, crafted with advanced design principles focused on ergonomics, meticulous precision manufacturing, and state-of-the-art automation technology. Engineered through rigorous simulation of engineering mechanics and comprehensive prototype trials, it stands as the ideal solution for industries such as medical, UAV, new energy auto parts, precision fixtures, and automated equipment components. It's perfect for mass-producing intricate precision parts.
Product Parameters

Model		TZ-V640	TZ-V850	TZ-V855	TZ-V1165	TZ-V1270
Worktable size L*W	(mm)	700x420	1000x500	1000x550	1100x530	1200x600
Work table Max. loading	kg	350	400	500	500	600
T-slots size (N×W×D)	mm	3x18x125	5x18x90	5x18x90	5x18x90	5x18x100
X/Y/Z axis travel	mm	600/400/450	800/500/500	800/500/550	1100/650/600	1200/700/700
X/Y/Z axis feed speed	m/min	48/48/48	48/48/48	48/48/48	48/48/48	48/48/48
X/Y/Z axis motor	kw	1.5/1.5/3 kw	2/2/3 kw	2/2/3 kw	2/2/3 kw	3/3/3 kw
X/Y/Z axis roller Guide	mm	30/30/35	35/35/35	35/45/45	35/45/45	45/45/45
Spindle taper		BT40	BT40	BT40	BT40	BT40
Max. spindle speed	rpm	12000	12000	12000	12000	12000
Spindle motor power	kw	7.5	7.5/11	7.5/11	7.5/11	11
Distance from spindle nose to workbench	mm	150-610	120-620	120-670	150-750	140-840
A.T.C capacity	pcs	24	24	24	24	24
Positioning accuracy (X/Y/Z)	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Re-positioning accuracy(X/Y/Z)	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300
Machine weight	kg	4300	5000	6000	6800	8100
Machine size (L*W*H)	mm	2000*2400*2600	2500*2250*2650	2600*2500*2650	2700*2500*2750	3100*2760*3100

Detailed Photos
• Size & Accuracy: Unmatched precision in every dimension.
Diameter: A precise diameter of 63mm with a tolerance range of -0.05 to 0, ensuring flawless machining.
Accuracy: The compact BT40 shanks offer superior accuracy and stability, perfect for achieving extraordinary precision in machining.
• RPM: Redefining speed and efficiency.
RPM: Our spindles are engineered for higher RPMs essential for high-speed cutting excellence. Depending on the model and brand of BT40 spindles, they generally attain speeds ranging from 8000 to 12000 rpm.
• Lubrication and Cooling: Innovatively designed for optimal performance.
Utilizing oil mist lubrication technology, this machine ensures comprehensive lubrication of bearings during high-speed operations. Additionally, the spindle benefits from internal circulating waterways for precise temperature control, maintaining optimal performance even at high speeds.

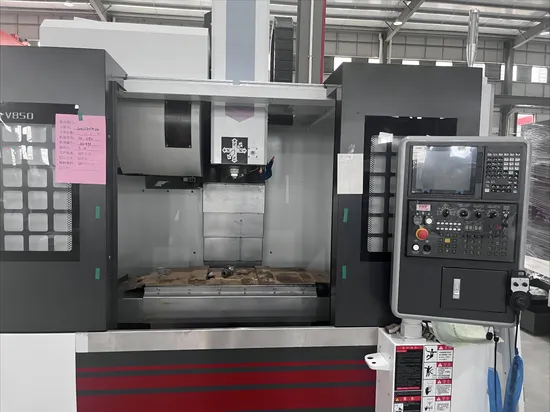

Picture of the machine

Main Parts		Branch/ Origin
CNC System		M80B Mitsubishi/ Japan
Spindle and three-axis servo motor		Mitsubishi/ Japan
Spindle		Dejiu TAIZ/ Taiwan
Ball screw		Yintai or Shangyin/ Taiwan (C3)
Screw bearing		P4NSK/ Japan
Rail		Yintai or Shangyin/ Taiwan (P)
A.T.C capacity		TAIZ or Deda/ Taiwan
Body casting		High density and high strength resin sand cast iron
Coupling		R+W\NBK / German
Electrical components		Franch
Handwheel pulse		East Test/Internal Security Control / Janpan
Pneumatic components		Taiwan AirTAC/ Japan SMC

Anoher Advantages
Discover outstanding processing conditions and a conducive production environment. With imported equipment including horizontal and vertical machining centers, CNC boring machines with rotating tables, and gantry guideway grinding machines, we ensure the highest accuracy of workpieces, enhancing assembly precision and sustaining accuracy over time.
Advanced Detection Methods: Precision redefined. Positioning accuracy is rigorously tested and corrected using laser technology, adhering to the stringent German VDI3411 inspection standard (conducted five times for assurance).
Every machine tool undergoes a stringent processing side test prior to factory dispatch, ensuring its readiness for real-world processing demands and compliance with exacting accuracy standards.

Product sample
• Enjoy the seamless integration of milling, drilling, and tapping within our CNC machine center. • Versatile CNC machining accommodates a wide range of metal profiles including aluminum, steel, copper, and various non-metal materials. • Widely utilized in the 3C electronics, rail transportation, aerospace industries, and more, our CNC Vertical Machine Tools set the standard for excellence across diverse applications.and more.
Packaging & Shipping
•Highly Protective: Ensuring your product arrives safely.
•Structural Stability: Built to withstand the rigors of transport.
•Environmentally Friendly and Recyclable: Committed to sustainability and a greener future.
FAQ
1.What's the Payment Terms?
A: T/T, 40% initial payment when order, 60% balance payment before shipment.
2.What is your trade terms?
A:FOB CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 30days. if some special machines will be some longer.You can place order accordingto delivery time and ship time we will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
5. What is the package of the machines?
A:The machines standard will be packed in wood case.
6:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
