Yk-60 Dry Powder Granulator Yk-60 Powder Granulation Granules Making Machine

Product Description

YK-60 Dry Powder Granulator Yk-60 Powder Granulation Granules Making Machine

Model: YK-60 Small Oscillating Granulator
Output: 20kg-60kg / hour
Power supply: 220V 0.5KW
Swing angle: >360(degrees)
Diameter of roller: 60mm
Rotating speed of roller: 46 times/min
Dimensions: 460mm×550mm×570mm
Net Weight: 55kg
Gross Weight : 68kg-70kg after packaging

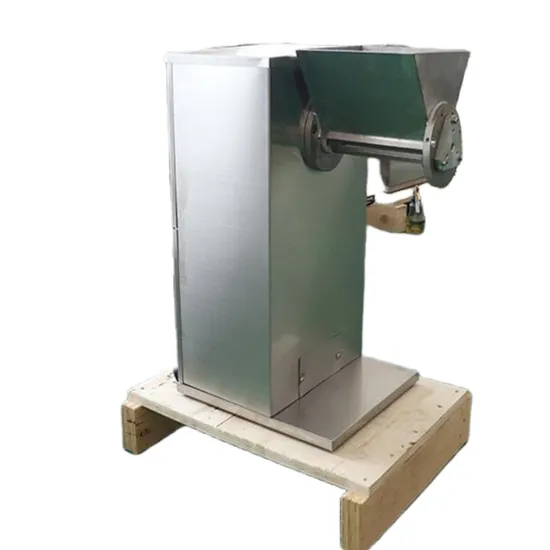

YK-60 Small Oscillating Granulator
The oscillating granulator is used to grind the wet powder into the desired granules, and it can also pulverize the bulk dry materials to the desired granules.
1. This machine is a swinging action of a rotating drum. Through the screen, the wet powder raw materials can be ground into particles, and it can also be used to pulverize the pressed blocks into ready-made particles.
2. Powders used for mixing in chemicals are not pulverized into granules, dried for tablet compression, and can be pulverized into clumps that agglomerate during storage, or clumps that agglomerate during chemical processing. In the planning of food industrial zones, it is used to process candy and sugar mixtures, wheat milk and other products, and in other industries such as ceramics, plastics and other mixtures become molded particles.
3. It is not suitable for solids, liquids, slurries or grinding.
4. The machine comes with a screen. The mesh number of the mesh screen should be determined according to the particle size requirements. Please tell us to install it.

YK-60 Small Oscillating Granulator Technical Paramaters

Type#	YK-60
Roller Diameter (mm)	60mm
Production Capacity (kg/h)	20-30 kg/h
Swing Range (degrees)	>360 degrees
Rolling Swing Times (t/m)	46 times/min
Motor Powder (w)	550w
Weight (kg)	55kg/Net Weight ; Around 70kg / Gross Weight
Dimension (mm)	460*550*570mm

YK-60 Small Oscillating Granulator Features

Main features: The screen is easy to assemble and disassemble, and the tightness can be adjusted appropriately. The seven-angle roller is easy to disassemble and easy to clean. The mechanical transmission system is all enclosed in the body, and is equipped with a lubricating system, and the whole machine runs smoothly. The speed of the rotating heptagonal drum can be adjusted.

The place where should be contacted with raw material is made of stainless fully .Its appearance is beautiful and taste and its clean is very convenient and its operation is simple and its energy consumption is low. And the drum is swung repeatedly through mechanical driving, which makes the material extruded from sieve,further granulated or crushed or speedily palletized.

Finished Desired Powders Shows

The machine is suitable for pharmaceutical, foodstuff, chemical, solid drink and so on industries.
It can make the stirred raw materials become granule with needed size or crush the blocked raw materials into small granule. The machine is mainly used for making granule with different specifications of pharmaceutical industry , chemical industry ,foodstuff industry ,etc .After dried ,the granule can be pressed into all kinds of shaped products. The machine can also used for crushing dried raw materials that are cohered.

YK-60 Small Oscillating Granulator Shipping

1. we will use good packaging to pack the small oscillating granulating machine in order to make sure they are completely protected perfectly .

2. we will check the machine to be good condition, and made small adjustment to make sure you can use the machine smoothly once you receive it

Shipping:	Strong Packaging
Payment:	Escrow Payment T/T WU MG
Delivery:	HKEMS, EMS, HK Air Post, UPS FEDEX at your option.
Country:	Europe Region, Canada, Australia, UK, USA and so on

Other Oscillating Granulator for choice

Model	YK-60	YK-90	YK-160
Roller Diameter (mm)	60mm	90mm	160mm
Production Capacity (kg/h)	20-30 kg/h	50-100 kg/h	200-300 kg/h
Swing Range (degrees)	>360 degrees	>360 degrees	>360 degrees
Rolling Swing Times (t/m)	46 times / min	50 times / min	55 times / min
Motor Powder (w)	550w	750w	2200w
Weight (kg)	55kg	150kg	250kg
Dimension (mm)	460*550*570mm	750*460*840mm	1100*750*1270mm

FAQ ( Frequently Asked Questions )

Q: What's your MOQ ?
A: It is ok if you need 1 piece of this Oscillating Granulator for a test .
Q: How can I pay ?
A: We have western union, bank transfer and Online payment ways ( VISA,MasterCard,JCB,Discover,AMERICAN EXPRESS ) with trade assurance.

Q: What's the shipping time
A: Different countries have different shipping time, you can tell me which city you are in, and we would tell you the accurate shipping time .
Q: What's the shipping service
A: We can help complete Customs-clearance, and also cover tariff since many friends don't want to contact Customs to do Customs-clearance in person .
Q: Which Machines are in stock ? I need quick delivery after my payment .
A: Oscillating Granulating machines, Capsule filling machines, Tablet presser machines, Tablet deduster machines, Counting machine and relevant machines are in stock for quick shipment.
Q: How long does it take to do maintenance on the Oscillating Granulator?
A: It takes about 1-2 hours to clean, disassemble, and grease it. We recommend that this is done at the end of every run to ensure the maximum life of your machine
Q: How can You guarantee the quality ?
A: 1. we have 100% test before shipping out order ;
2. quality guaratee of 12 months ;
