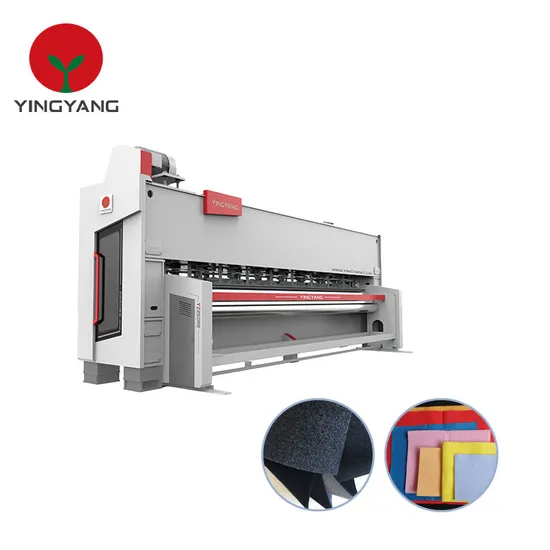

High Speed Needle Loom&Needle Punching Machine& Needle Punch Non Woven Fabric Machine Textile Needle Loom Machine

Product Description

Main products

Main Products
Bale opener	Blending machine	Vibration feeder	Carding machine
Cross lapper	Drafter	Needle punching machine	Oven
Ironing machine	Winder and cutter	Edge-trim opener	Velour loom

Product Description
Yygz-High Speed Needle Loom&Needle Punching Machine
Function
Used for reinforcing and surface finishing of nonwoven fabrics
Product Parameters
Main specification

Main specification

Working width: 2200-8000 mm

Needle density: 5000-8000 n/m

Needle stroke: 25-60 mm

Needle frequency: 1200-1800 s/min

Needling type: double shaft single board or double boards, up stroke or down stroke, tandem needle

Usage
Needle-punching machine is a kind of special equipment for mechanically reinforcing. The nonwovens produced by needle-punching have good permeability and excellent mechanical performance, which are widely used for production of geotextile, carpet, paper-making felt, shoe leather substrate, garment accessories etc.
Structure
Crank case complete with a horizontal and vertical balance system.
Central oil lubrication circulation and cooling system complete with pressure and temperature alarm systems
Magnesium alloy/PU combined needle board locked firmly by air tube; multi random computer needling pattern for needle board.
Chrome plated delivery rollers with carved or patterned surface.
Auto top and bottom dead center controlled stop.
E, F: Gantry Machining Center from Europe
G: Zeiss Measuring instrument
1)Imported advanced technology machining and measuring facilities process the components.
Different specialized machining facilities for different components, such as the crankbox, moving beam, needle beam, and machine frame.
2) Professional assembling process with fully automatic tools.
Individual assembling room for crankbox, no dust during the assembling for inside parts of crankbox.
3) CNC machines to process the needle board, stripper plate and bottom plate.
To record all the program, it's very convenient to provide the spares in the future no matter how long ago you buy the machines.
4) High speed, no vibration, long lifespan, and less fault frequency
