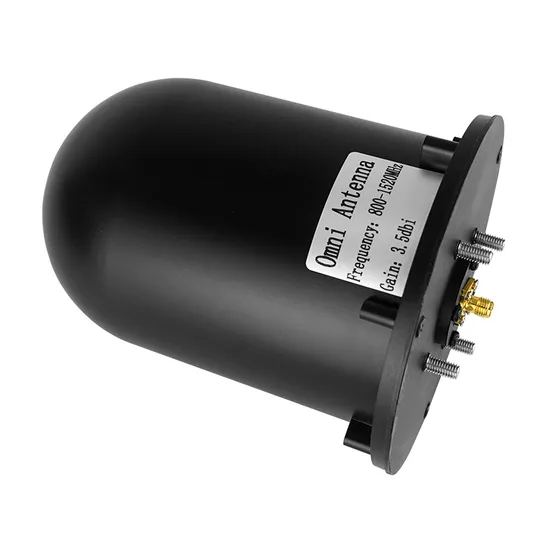

Frequency Band 800-1620MHz 3.5dBi Full Polarization Omni Fiberglass Antenna

Product Description

Frequency band 800-1620MHz 3.5dBi Full polarization omni fiberglass antenna
Product Description This is fashion hat type omni fiberglass antenna ,the bottom of antenna set 5 mount hole that can firmly connect the device for use.The hat shape 360 dgree full range emit signal ,it is can cover 800-1620 MHz frequency band .The omni antenna takes full polarization method ,max gian around 3.5dBi-4.5dBi .
The antenna suitable for a variety of scenarios,such as school ,government ,entertainment venues,and communication field .It is directly produced by manufacturer factory that frequncy band can be customization . 1. High-precision manufacturing: This antenna is manufactured using high-precision technology to ensure that the product has excellent stability and reliability.
2. Strong anti-interference ability: Through optimized design, this antenna has strong anti-interference ability, effectively resists interference from external signals, and ensures communication security.
3. Wide range of applications: This antenna is suitable for a variety of anti-drone equipment, providing high-quality communication security solutions for various scenarios.
4. Easy to install: The sophisticated design and structure make this antenna easy to install and maintain, saving you valuable time and cost.
Features :
1.3.5dBi omni antenna
2.It takes Vertical polarization
3. it is a outdoors use antenna
4.800-1620MHz frequncy band covered
5.Manufaturer produce directly support customized
Product Parameters

█Electrical Specifications
FrequencyRange	800-1620MHz
Gain(dBi)	3.5±0.5dBi
VSWR	≤2
Polarization	Vertical
Horizontal Beamwidth(0º) Vertical Beamwidth(0º)	360º 55±5º
ovality(dB)	≤±2dB
Input Impedance(Ω)	50Ω
Maximum input power(W)	50W
Inpur connector type	Sma-K
█Mechanical Specifications
Dimensions­mm(Height/Width/Depth)	115*140mm
Packing size(mm)	470*350*220mm(20PCS)
Antenna weight(kg)	0.35KG
Rated Wind Velocity(m/s)	31m/s
Operational Humidity(%)	10- 95
Radome Color	Black
Radome material	Fiberglass
Operating temperature(ºC)	-40~55 º
Installution Method	Machine installation

Application 1.The digital source need match the power amplifier use ,when it connect the power amplifier the module possess interference functions ,it is widely use range, such as riot control organization,large entertainment venues,government sector,Schools and prisons.Actually it is a air threatens solution .
