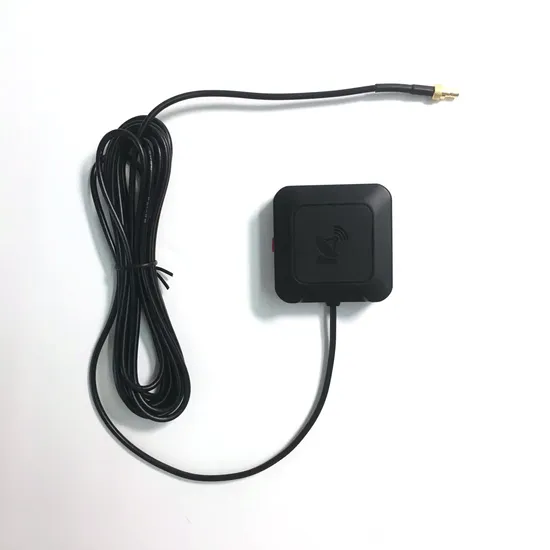

Active Car External GPS Antenna Magnetic Mounting 1575.42MHz Rg174 3m Cable with SMA Connector GPS Antenna
| US$1.50-2.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
GKZS-GPS-SMAJZG3-BCA-T
Nature of Operation
Receiving Antenna
Sturcture Form
Wire Antenna
VSWR
<1.5
Size
48*37*17mm
Range of Receiving Frequency
1575.42MHz
Gain
28dB
Polarization
Rhcp
Mounting
Magnetic
Style
Small and Fashion
Origin of Place
Guangzhou
Weight
110g
Usage
Car Antenna
Usage Occasion
Base Antenna
Operating Wavelength
Microwave
Base Antenna
Directional Antenna
Dimensionality
One-Dimensional Antenna
Transport Package
Polybag, Paper Cartoon
Specification
ISO/TS16949, RoHS, ISO9001-2015
Trademark
GKZS
Origin
China
HS Code
8529101000
Production Capacity
500000/Day
Product Description
Technical parameters| Design Specifications | Typical |
| Working Frequency | 1575.42MHz |
| Gain | ≤3.0dBi |
| Antenna efficiency | 45% |
| VSWR | ≤2.0 |
| Ploriaztion | RHCP |
| Axial Ratio | ≤3.0 |
| Radiation pattern | Omni |
| Impedance | 50Ω |
| Power handling | 33dbm |
| Interface | SMA Male/ RG174-3M |
| Overal dimensions | 48.5x37x17 |
| Weight | 60.5g |
| Operatin Temp | -40ºC~80ºC |
| Storing Temp | -15ºC~30ºC |
Amplifier characteristics
| NO | Item | (Specifications) |
| 1 | Frequency range | 1575.42±3MHz |
| 2 | Amplifier gain | 28±3 dBi |
| 3 | V.S.W.R | ≤2.0 |
| 4 | Noise Figure | <2.0 |
| 5 | DC Voltage | 3~5V |
| 6 | DC Current | ≤20mA |
Test
Drawing
