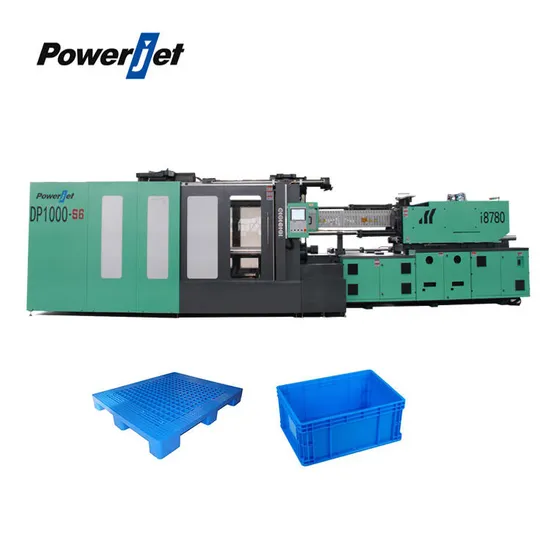

High-Precision 1000t Two Platen Plastic Injection Molding Machine

Product Description

Two-Platen Injection Molding Machine
DP Series Two-Platen Large Injection Molding Machine For Deep Cavity Products Like: Home Appliances, Car Parts, Outdoor Dustbin, Plastic Pallet, Plastic Crate, etc.
FEATURES:
1:Saving More Space - Small footprint, bigger mold carrying capacity.
2:Saving More Power - Servo system configuration, more energy-saving ability.
3:High Precision - Less production flash.
4:Lower Noise - Small hydraulic impact, lower noise and oil consumption.
5:More Automation - Accurate mold positioning meets the needs of automatic pickup and insert.
6:Longer Lifetime - Even mold force insures long service life.
7:High Rigidity Slider - With better orientation and parallelism, can carry heavier molds.
8:Step-less Adjustment - Ensures the accurate and stable clamping force.
9:High Rigidity Clamping Frame - Makes the whole machine running more smoothly.
10:High Precision Linear Guide - Faster injection response and accurate positioning.
11:Variety Of Screw Available - Adapts to different types of products.
12:Higher Standard Configuration - With 12" colorful display screen, CPU memory upgrade to 1.4G.
Product Description

LAMPING UNIT	Clamping force	KN	10000
	Opening stroke	mm	1600-2300
	Max.datlight	mm	3000
	Platen size	mm	2200*2100
	Space between bars	mm	1610*1450
	Max.mold height	mm	1400
	Min.mold height	mm	700
	Ejector stroke	mm	380
	Ejector force	KN	330
	No.of pins	PCS	33
	Max.mold weight	T	34
INJECTION UNIT	Screw diameter	mm	130
	Screw L/D Ratio	L/D	23.7
	Injection Pressure	MPa	193
	Shot volume	cm3	8960
	Shot weight (ps)	g	7996
		oz	282
	Injection rate	g/s	915
	Plasticizing capacity	g/s	138
	Screw stroke	mm	450
	Screw speed	rpm	167
POWER UNIT	Hydraulic system Pressure	MPa	17.5 24
	Pump motor power	KW	32.7+41+41+11
	Heater power	KW	76
GENERAL	Oil tank capacity	L	2600
	Machine weight	T	75
	Machine dimensions (L*W*H)	m	12.5*4.5*3.5
