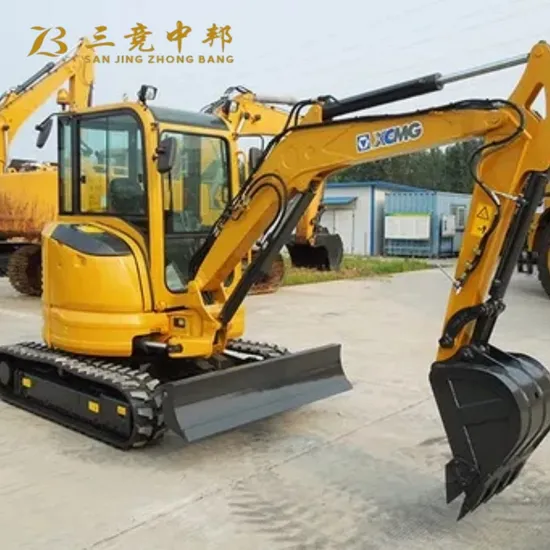

Hot Sale Xe35 Used Excavator Crawler Compact Excavator 3.5t Mini Digger for Sale

Product Description

Product Parameters

Model	XE35U
Standard boom length	2560mm
Standard arm length	1350mm
Standard bucket capacity	0.12m³
Operating weight(cab version)	4200/4100kg
Engine model	3TNV88-Z
Umber of cylinders	3
Rated output power/speed	22.2/2400kW/rpm
Maximum torque/speed	103/1600 N*m
Displacement	1.642L
Fuel tank capacity	40L
Hydraulic tank capacity	45L
Engine oil capacity	7L
Total length	4970mm
Track total width	1740mm
Track total height	2550mm
Turntable width	1480mm
Track length	2215mm
Standard track shoe width	300mm
Track wheelbase	1721mm
Track gauge	14401mm
Counterweight ground clearance	587mm
Minimum ground clearance	297mm
Tail slewing radius	870mm
Track height	537mm
Maximum excavation height	5000mm
Maximum unloading height	3600mm
Maximum digging depth	3060mm
Maximum vertical digging depth	2260mm
Maximum digging radius	5300mm
Minimum turning radius	2170mm
Maximum bulldozer lifting height	305mm
Maximum bulldozer blade cutting depth	360mm
Travelling speed (high/low)	3.6/2.2km/h
Slewing speed	9r/min
Climbing capacity	<30°
Grounding specific pressure	36.6kPa
Bucket digging force	28.6kN
Bucket bar digging force	20.3kN
Maximum traction force	31.6kN
Dynamic arm deflection(left)	75°
Dynamic bamboo deflection (right)	50°
Rated flow rate of main pump	108L/min
Main safety valve pressure	23MPa
Travelling system pressure	21MPa
Slewing system pressure	23MPa
Pilot system pressure	3.9MPa

Detailed Photos
Product Description
XE35U hydraulic mini excavator cooperates with multi-functional working tools to complete tasks such as excavation, loading, leveling, trenching, crushing, drilling, pinching, lifting, etc. It is widely used in the construction and production of hydropower, transportation, municipal, garden, farmland transformation, oil pipelines, etc.
More energy-conservation and environmental protection
By adopting famous brand engine meeting national stage III emission standard, mechanical fuel injection pump has reliable performance. With compact size, the maintenance is convenient. Enough low torque reserve can ensure strong power. High reliability can reduce the maintenance cost.
More efficient return
Rear-end swing radius adopts tailless design, which can ensure that the tail part will not collide with obstacles under narrow working conditions. Deflectable working device can deflect to left and right at 75° and 50° separately, which can achieve compound action with superstructure. Through swing cooperation with superstructure, digging operation parallel to the wall surface will be achieved and various kinds of working conditions can be coped with easily.
More reliable and durable
Partial strengthen the parts with great stress on boom and arm, and meanwhile adjust the structure to disperse the stress, which makes the life longer. With standard configured new bucket, the depth of bucket is reduced and unloading material will be faster and easier.
