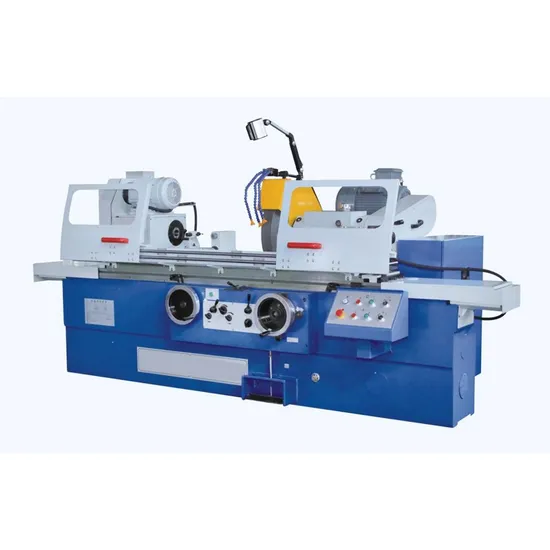

M1332b Mc1332b Cylindrical Grinding Machine

Product Description

Product Description
M1332B cylindrical grinding machine is designed on thebasis of M1332A cylindrical grinding machine. It is suitablefor grinding cylindrical or conical parts, for its accuracy IT6-
IT5.
· Worktable longitudinal travel driven by hydraulic atinfinitely-variable-speed, or driven by handwheel.Lubrication for hole throttle unloading form.
·Wheelhead cross travel provided with hydraulic rapidadvance and withdrawal, manual microfeed. And feedgrinding wheel automatic cycle function.
·Workpiece, wheel, oil pump and coolant pump respectivelydriven by their individual motor.
·Two sets of silding bearing consisting of four-shoes used aswheel spindle bearings. The spindle bold, increased motor,high grinding efficiency.
· Wheel dresser mounted on the tailstock, and hydraulictailstock top bavk device.
·The machine with the moving parts of electrical, hydraulicchain, safe and reliable operation.
MC1332B Series table moves using hydrostatic guideway.

Product Parameters

Description	unit	M1332Bx1000/1500/2000/3000	MC1332Bx2000/3000
Grinding length	mm	1000/1500/2000/3000	2000/3000
Grinding diameter	mm	φ8-φ320	φ8- φ320
Center height	mm	180	180
Max. workpiece weight	kg	150	500
Worktable speed	m/min	0.1~4	0.1~4
Wheel peripheral velocity	m/s	38	38
Max.travel of worktable	mm	1100/1600/2100/3100	2100/3100
Swivel range of worktable		-3-+7/-3+6°-2~+5/-2~+3%	-2~+5°/-2~+3°
External wheel size	mm	φ600×75×φ305	φ600×75×φ305
Spindle speed of workhead	r/min	26,52,90,130,180,260
Grinding spindle speed	r/min	1100	1100
Headstock top	morse	N0.5	N0.5
Tailstock top	morse	N0.4/N0.4/N0.5/N0.5	N0.5
Rapid advance and withdrawalamount	mm	50	50
Wheelhead displacement per rev of handwheel coarse/fine	mm	2/0.5	2/0.5
Wheelhead displacement per div of handwheel coarse/ fine	mm	0.01/0.0025	0.01/0.0025
Total motor power	kw	14.27	14.27
Overall dimensions(L×W×H)	mm	(3605/4605/5605/7605)×1810×1515	(5605/7605)×1810×1515
Machine weight	kg	4000/4600/6600/8600	6600/8600
