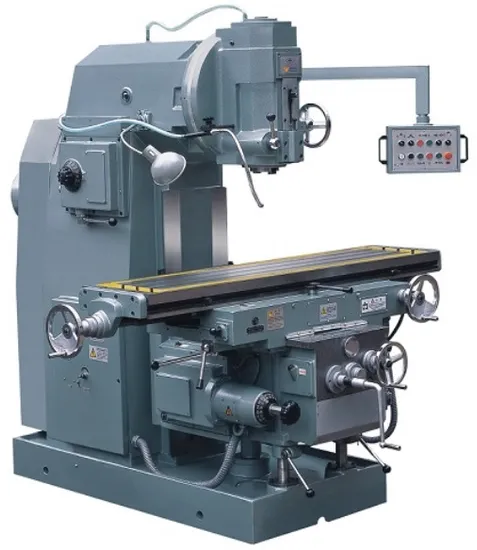

High Precision Knee-Type Vertical Universal Milling Machine

Product Description

Specifications

Specification	Unit	VM40
Table size	mm	400X1700
T-slots(NO./Width/Pitch)		3/18/90
Longitudinal travel(manual/auto)	mm	900/880
Cross travel(manual/auto)	mm	315/300
Vertical travel(manual/auto)	mm	380/360
Rapid feed speed	mm/min	2300/1540/770
Max load	kg	800
Spindle taper		7:24 ISO50
Spindle speed range	r/min	30~1500
Spindle speed step	steps	18
Spindle travel	mm	85
Max.swivel angle of vertical milling head		±45°
Distance between spindle nose and table surface	mm	30/500
Main motor Power	kw	11
Overall dimensions(L×W×H)	mm	2556×2659×2298
Net weight	kg	3800

Main characteristics And Application
Vertical Knee-type Milling Machine is suit for milling flat, inclined face, angle surface, slots by employing disc cutters, angular, cutters, formed cutters and face metal milling cutters. When mounted with the index, the machine will be able to perform milling operations in gears, cutter, helix groove, cam and tub wheel.
Vertical milling head can be swiveled by +-45 degree. Spindle quill can be moved in vertical. The longitudinal, cross and vertical movements of the table can both be operated by hand and power, and it can be rapidly moved. Working table and slide ways adopted quality cast hardened ensure high accuracy.
Standard accessories
Tool bal
Reducing sleeve
Tools
Manuals
OPtional accessories
Machine vice
Rotary table
Dividing head
Spring collet
Tool box
Iron wedge
DRO
Transmission box(X53K/1)
Feature:
Model VM40 is an multipurpose milling machine. It is suted for machining various parts with face milling cutters, cylindrical cutters, metal slotting saws, end mills, etc. All the slide ways adapted quality cast hardened to ensure high accuracy. With enough power and rigidity, hard alloy cutters can be used to process in high speed.
Standard Accessories

No	Name	Size	Qty	Mark
1	double-ended spanner single-ended wrench	17×19,22×24,27×30,32×36 14	each 1 pc	S91-1 S91-2
2	socket head wrench	5,8,10	each 1 pc	S91-7
3	Electrical box wrench		pair	62W845A
4	draw bar	M24×700	1set	B1S63-1
5	oil gun		1
6	lighting device		1set	Install on the machine
7	cooling device		1set	Install on the machine
