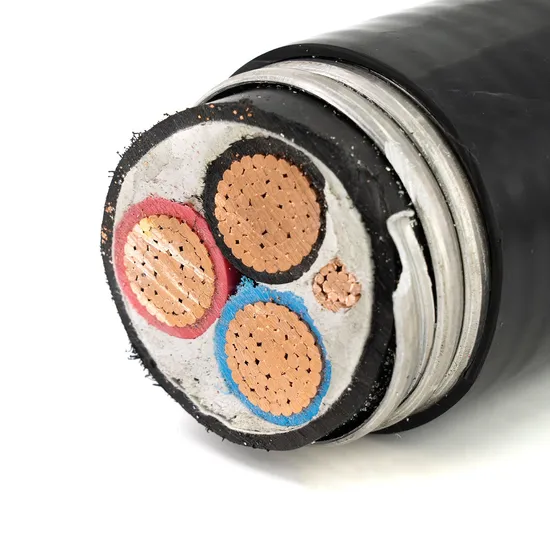

XLPE PVC Copper Power RW90 Armoured Teck90 Electrical Power Aluminium Wire Electric Electrical Industrial Flexible Cable Teck 600V CSA ISO CE

Product Description

14AWG-1000KCMIL 3C Teck90 cable

Conductor: annealed bare copper wires, or compact aluminum 8000 series wires, class B. Insulation: Cross-linked Polyethylene (XLPE) Type RW90 Color: Black, white for 2 conductors;
Black ,red, blue for 3 conductors;
Black, red, blue, white for 4 conductors. Bonding conductor: annealed bare copper wires, or compact aluminum 8000 series wires, class B. Inner Jacket: Flame-retardant and moisture resistant Polyvinyl Chloride (PVC) Armour: Aluminum Interlock Armour (AIA); Outer-jacket: Low-temperature, moisture and sunlight resistant Polyvinyl Chloride (PVC), black
Application:
Suitable for use in exposed or concealed wiring in dry or wet locations, in
ventilated or ladder type cable trays in dry or wet conditions, on walls or beams, or directly buried.
Suitable for use in hazardous locations: Class I - Groups A, B, C and D, Class II - Groups E, F and G, Class III - All Groups
Standard: CSA C22.2 No. 131, Type TECK90 cable;
CSA C22.2 No. 38, Thermoset insulated wires and cables (Type RW90)
FT4 - Flame Test (70,000 BTU/Hr - Vertical Tray Flame Test)
Working temperature: -40ºC to +90ºC
Voltage: 600V

Phase Conductor		Bonding Conductor	Phase conductor single wire numbers	Nominal thickness of XLPE insulation	Approx. diameter after assembly	Nominal thickness of inner sheath	Approx. Diameter armoured	Nominal thickness of outer sheath	Approx. O.D. of cable
Core	AWG or Kcmil	AWG or Kcmil	Nos.	mm	mm	mm	mm	mm	mm
3	14	14	7	0.76	7.3	1.14	14.7	1	17
3	12	14	7	0.76	8.3	1.14	15.7	1	18
3	10	12	7	0.76	9.7	1.14	17	1	19
3	8	10	7	1.14	12.3	1.52	20.4	1	22
3	6	8	7	1.14	14.2	1.52	22.3	1	24
3	4	8	7	1.14	16.6	1.52	24.8	1	27
3	3	6	7	1.14	17.9	2.03	27.1	1	29
3	2	6	7	1.14	19.6	2.03	28.8	1	31
3	1	6	19	1.4	22.4	2.03	31.6	1	34
3	1/0	6	19	1.4	24.5	2.03	33.6	1	36
3	2/0	6	19	1.4	26.7	2.03	35.8	1	38
3	3/0	4	19	1.4	29.2	2.03	38.4	1.2	41
3	4/0	4	19	1.4	32.1	2.03	41.3	1.2	44
3	250	4	37	1.65	35.7	2.03	44.8	1.2	47
3	300	4	37	1.65	38.4	2.79	49.1	1.2	51
3	350	3	37	1.65	40.9	2.79	51.6	1.2	54
3	400	3	37	1.65	43.3	2.79	54	1.2	56
3	450	3	37	1.65	45.5	2.79	56.2	1.2	59
3	500	3	37	1.65	47.5	2.79	58.2	1.5	61
3	550	3	37	2.03	51.3	2.79	62	1.5	65
3	600	2	61	2.03	53.4	2.79	64.1	1.5	67
3	650	2	61	2.03	55.1	2.79	65.8	1.5	69
3	700	2	61	2.03	56.9	2.79	67.6	1.5	71
3	750	2	61	2.03	58.6	2.79	69.3	1.5	72
