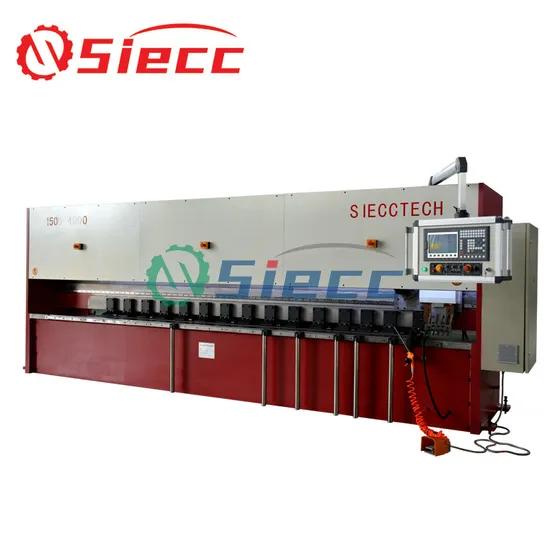

Stainless Steel Sheet V Grooving Groover Cutter Cutting Machine
| US$20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CHV
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS
Condition
New
Trademark
SIECC
Origin
Jiangsu/China
Production Capacity
1000 Sets/Year
Product Description
| THE MAIN DISCRIPTION |
| SIECC has been in machine industry field for about 10 years, we produce and sell all kinds of NC/CNC press brake, 3 or 4 roller rolling machine, high quality shearing machine including swing beam and various rank guillotine shears, hydraulic press, V cutting grooving machine (vertical and horizontal) lathe machine, milling machine etc. All machines are under CE certification and experienced in the market of European such as United Kingdom, Belgium, Romania, Hungary, Croatia and also all the other countries in the world. We produce about 40 sets of grooving machine monthly. In this large production volume, therefore enable us to be a price-effective in manufactory cost level. We consist in financial flexible principle to collaborate with our partner for a better recovery cost after their investment. We also provide client-oriented after-sale service with engineer available if needed. In any cases, our action is in rapid response, immediately action in both consultation and site guidance. The machine quoted in this paper is Various Rank V-cutting machine |
| THE STURCTURE CHARACTER |
| This machine uses the gantry-travelling structure assembled with machine base, beam, knife rest,CNC system,air pressure feeding system, compressed air blowing system etc.. Both of the base and beam are made of the box type structure. The optimized design of finite element ensures no gaps between the boards. The finished product has the characteristic of well rigid, high accuracy and long service life. The forward-backward knife rest (Y1 shaft) movement, up-down knife rest (Z shaft) movement, forward-backward end pressure (Y2 shaft) movement are controlled by CNC system, AC servo motor, ball screw drive. It has the advantages of high control accuracy, positioning precision. The left-right beam (X shaft) movement driven by AC frequency conversion speed regulating motor, helical gear, rack pair drive. It has the characteristics of high speed, strong lad capacity. By air pressure feeding system, according to different thickness of workpiece surface and adaptive feed side pressure, on board the pollution and effectively guarantee of environment and temperature, is one of the effective measures to ensure the machining accuracy and repeatability and accuracy. Compressed air blowing material and cooling system, which cannot only prevent the cutting scrap scratch the surface the surface of the workpiece, but also improve the service life of cutting tools by the tool cooling. Increased in the pressure feeding system at the same side of the machine to blowing system, ensure the waste collection greatly. |
| BLADE |
| Two kinds of blade can be chose: High-Speed Steel Tool (White Steel) and Hard Alloy Cutter. For grooving Stainless Steel, we recommend KORLOY alloy blade TT9080 from Korea, which is manufactured with high abrasion resistance material, specialized for processing high temperature alloy and cast iron processing. About five dollars per piece, the conservative estimation life is 3,000,000-4,000,0000mm, more depend on the operator. With the air cooling, the life of the blade is much longer. |
| SYSTEM(Japanese AVAIL system with X,Y,Z three axis display) |
| Strong automatic error correction function for program, accurately run the specific line, greatly reduce the human error rate; Processing interface, simple keyboard for size input; U disk transmission the processing size; --Reduce the time for input dimension, improve the efficiency greatly; --Help regular customer information; --Relating to a folder support 9999 group of program; --200 sets of different processing size available in stock; 400 groups of V - slot can be processed at the same time in different width, depth; Support shortcut input for size; Delete, insert a row support in sizes; The humanized retracting function, easy to change the blade Support according to the different processing technology to replace the cutting action (key control knob); --Gradually from slow to fast; --Constant speed cutting; Support automatic button size function, save manual calculation; Support any position processing saltatory; Support the position memory after power off; Support manual modification for the stop position and the cutter coordinate position; |
| THE MACHINE CHARACTER |
| High stability, strong rigidity and also convenient in usage. The CNC control system has several parameter to choose, big in storage and easy in operation. CNC control system has 3 axis, 3 axis is AC servo motor drive, high in control precision. Has 3-10 cutting structure, greatly improve the cutting working efficiency, and also can promote the cutting quality. Use ball-screw and line guide, gear and rack transmission to enhance the machine durability and precision. The repeat positioning accuracy is ±0.01MM. |
| Company | Shining Industrial Enterprise(China) Co., Ltd Nantong Brillante Industrial Enterprise Co., Ltd Edward Pearson Machinery (Shanghai) Co., Ltd JIANGSU GOLD-PARTNER ENTERPRISE CO.,LTD |
| Brand | SIECC/EDWARDS PEARSON/HECTMAC |
| Website | braillante.en.made-in-china.com braillante.en.made-in-china.com braillante.en.made-in-china.com braillante.en.made-in-china.com |
| Video | 1. Rolling https://youtu.be/Fi3tFKSoLlY 2. Press brake https://youtu.be/pyIChKoh1eA 3. Grooving https://youtu.be/pFZh_n3vrss 4. Ironworker https://youtu.be/0O9OeCmu9QI 5. Plasma cutting https://youtu.be/71BKxv6tVB8 |
| | |
