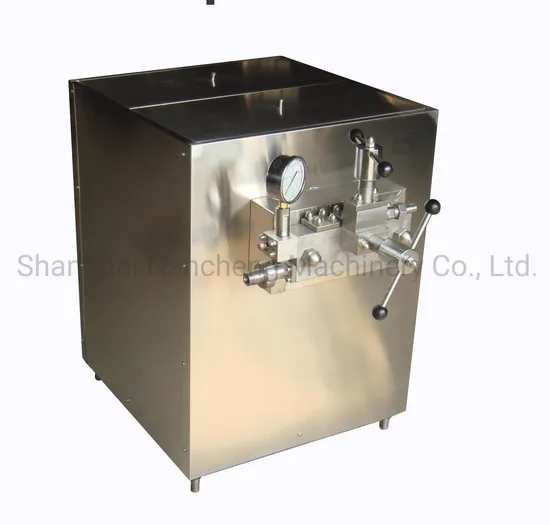

High Pressure 300L/H Ice Cream Homogenizer

Product Description

High Pressure 300L/H Ice Cream Homogenizer
Homogenization is the mechanical process where raw materials are put under high pressure and broken down into smaller particles.
This equipment can be used widely in production, research and technical development of food, milk extract, drink, pharmacy, fine chemical, biotechnology and other fields.
Many kinds of material such as milk or bean milk can be homogenized under high pressure to considerably thin the fat balls in the milk liquid, which makes the products be easy to be digested and absorbed, and improve the edibleness.
This equipment can be used in the production of ice cream to improve the thinness and fraction void of liquid material.

Main Characteristics:

1- Lubricate system	Lubricate system which is both squirting and splash uses soft plastic pipes that can bear high pressure and oil. The oil can keep stable temperature at the same producing condition, so it brings excellent lubricate effect. The recycle cooling system reduces driving box's temperature and lubrication waste.
2- Driving box	The eccentric shaft is made of special alloy steel which is wear-resisting and has long using life. The half construction is easy to maintain and be knocked down. Driving and eccentric shafts are drive by v-model gears which have following advantage: low noise and good stability.
3- Wear parts	Homogenizing valve, one-way valve and piston are made of special alloy steel, with high impact resisting corrosion-resisting. This material is applicable to any CIP's corrosion-resisting. In special condition homogenizing and oneway valves can be made of alloy steel which has same function. All kinds of sealing material have following advantage: wear-resisting, non-toxic, pressure-resisting and long life. It is easy and convenient to change wearing parts, especially it is no need to take off pump during changing pistons and sealing rings.
4- Pump construction	The square high pressure covers on the pump have high intensity and excellent sealing function. The tighten nuts with lids have nice out looking. The material gate is according to food sanitation and pharmacy standards. Out-in parts take adjustable tie-in which is easy and convenient to be taken off and fixed.
5- Type	Our homogenizes are vertical(for low capacity) and horizontal(for big capacity construction which advantage is good stability and easy to operate, maintain and repair.
6- Saving energy	Our homogenizers arebased on low energy waste and high efficiency designing, which has clear effect at the same producing condition.

APPLICATION
Food and Drink	Juice ,Condiments, Peanut oil, Protein powder, etc.
Dairy : Milk	Milk, ice cream, yogurt, cheese, butter, etc.
Pharmaceutical	Antibiotics,Intra lipid, Antacids, etc.
Chemical	Lubricants, disinfectants, paints, dyes, etc.
Other	Cell disruption, yeast, cosmetics.

Our Services 1.Provide for equipment inspection certificate and manual, to ensure that users properly install and use.
2.Equipment to reach the destination, the company will send engineers to guide installation and commissioning and customer training until satisfied.
3. The warranty period will be free to customers wearing accessories, after one year warranty period, our company to provide parts at cost.
4.we provide lifelong maintenance service, including if necessary, to send engineers to the customer at the service.

Company Information Shanghai Nancheng Machinery Co., Ltd. is a professional manufacturer dedicated to research, development, manufacture and sale of all kinds of beverage and foodstuff machinery.
Having the rich experience of more than 20 years in foodstuff & beverage machinery field, we can help customers design, manufacture, install and operate the turn-key project for mineral water, pure water, carbonated drink, fruit juice, milk, yogurt, cheese and ice cream production lines etc.
Our main products include water treatment systems, bottle blowing machine, RO systems,3-in-1 mono block filling machine, coil, plate, tubular UHT sterilizers, homogenizer, ink jet printer, liquid packing machine, shrink labeling machine, all kinds of tanks, ice cream machine,popcorn machine,bakery machine, foodstuff machine, etc.
With the good reputation and fame among the loyal customer, our products have been sold and distributed to over thirty provinces and cities in China, exported to more than 85 countries and areas throughout the world. Upholding the idea of providing customer with "Innovative solution, Reliable Quality and Responsible Service", we aim to offer more reliable and flexible machines that are easily adaptable to market developments and future technology.
Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customer set up whole production line for mineral water, pure water,cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.

We warmly welcome customer to visit our factory at any time,you will see the machine working and running conditon in our factory!
Responsible Man(General Manager):Jason
