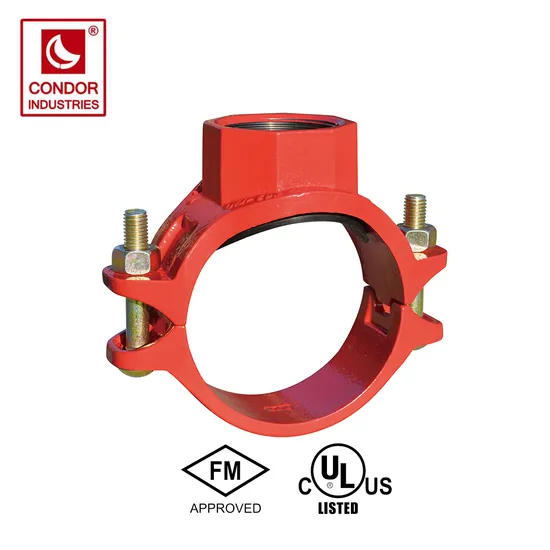

Fire Fighting UL FM Approval Style 3j Threaded Outlet Mechanical Tee

Product Description

Detailed Photos


Product Description
Branch outlet fitting is a supplement to the grooved piping system. It is a very important piping unit in the mechanical piping system. The appearance of the branch outlet fitting makes the installation of the piping system more convenient and quick.Branch outlet fittings replaced welding and reducing Tee, to solve the problem of the connection branch.
Branch outlet fitting is another way of piping innovation, is the use of bolted connections branch pipe fittings. No need to weld directly from the supervisor on the branch pipe. The method used is in the need to take over the main branch pipe processing a round hole, fitted with branch outlet housing. The opening must be secured on the centerline of the pipe and be mechanically perforated by a dedicated opening.
CONDOR branch outlet fitting, including mechanical tee, mechanical cross, U-bolt. Product Parameters
1.Housing material:Ductile iron conforming to ASTM A-536, grade 65-45-12.
2.FM Approved & UL Listed:R.W.P. rated working pressure 300PSI(2.065MPa / 20.65bars)
3.Housing Finish:Fusion Bonded Epoxy Coated(Optional:Hot Deep Galvanized and Others) 4.Coupling gasket material:EPDM(Optional:Nitrile NBR,Silicone and Others)
5.Bolts and Nuts:Heat treated and electro galvanized bolts with oval neck, and heavy duty hexagon nuts. Track head meeting the physical and chemical requirements of ASTM A-449 and physical requirements of ASTM A-183.
6.Size Range:DN50 X DN25 through DN200 X DN100 (2″ X 1″ through 8″ X 4″)
Certifications

Company Profile
CONDOR brand Grooved products are developed and manufactured by Henan Condor Machinery Imp.& Exp. Co., Ltd., which is established in 2009 and most professional manufacturing enterprise of piping products. CONDOR is the one of first grooved products manufacturer in China,equipped with most advanced casting, milling, painting and assembling facilities, including 3 DISA automatic molding line, semi-automatic casting machine, precision casting line, large size floor molding system and relevant comprehensive testing equipment.
CONDOR owns 2 casting factories, one rubber millingfacility and 2 assembling centers. Over 500 employees, annual casting productioncapacity 100,000tons. Our total floor space over 110,000m², annual turnover exceeds 120 million USDCompany services

CONODR Piping Systems Solutions span many markets. Our piping system are found worldwide in multiple applications-from commercial comfort piping system; industrial process and utility piping; petrochemical and metallurgy industries; coal and mineral mining operations; water and wastewater plants and facilities. CONDOR Piping Systems Solution covers fire-hydrant and sprinkler system, water spray and water mist system, foam and gas system .For all systems CONDOR offers unique solution for each individual practice and actual problem. CONDOR brand Grooved products are designed, manufactured, managed strictly by UL listed and FM approved system under Henan Condor Machinery Imp.& Exp. Co., Ltd.

FAQ
1. Q: Are you a manufacturer or trading company?
A: We are valve manufacturer and factory, and not trading company.
2. Q: Do you have agent or representative abroad?
A: We do not have agent abroad, please contact us to purchase valves directly.
3. Q: What's your product range? A: We can produce Butterfly valve, Gate valve, Check valve, Control valve, Y strainer, Coiplings and Pipe Fittings By ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
4. Q: Is there any stock in your factory? And how about your lead time?
A: We stock valves with normal sizes. The lead time depends on your quantity, Generally about 30 days.
5. Q: Which countries do you export to?
A: We export directly to vast majority of countries in the world.
6. Q: What certificates will you provide?
A: We can provide UL FM.
7. Q: After-sales service
A: 18 months year warranty for all kinds of products.
As an experienced manufacturer, you can rest assured of the quality and sales service.
8. Q: Transportation
A: Transported by DHL, UPS, EMS, FedEx, SF, by Air, by Sea.
9. Q: Do you provide free sample?
A: Free sample is OK for us.
10. Q: Do you accept custom design on size?
A: Yes, if the size is reasonable.
