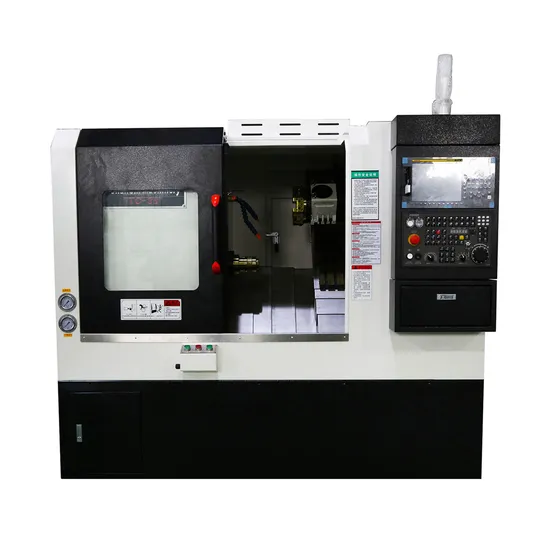

Small Size Slant Bed Type CNC Lathe Machine with Fanuc/Mitsubishi /Siemens/Syntec Control System Tc-36

Product Description

Product Description
High Precision Slant Bed CNC Metal Turning Lathe TC-36 Cnc Lathe Turning Center Machine
Model Number : TC-36
* Stable performance and excellent structure
* High precision
* Automatic feeding
* Easy to operate
* Customized service provided

Detailed Photos
Quality CNC system
Comply with the ergonomic interactive interface to complete the precision machining requirements . (Fanuc/Mitusubishi/Siemens/Syntec)
Choose Materials Carefully
Keep improving and use high-quality materials to make the machine last longer.
Quality castings
The base is cast as a whole, with a 45-degree inclined bed, high strength and good shock absorption .
Thickened viewing shield
The observation shield is made of thickened material, which is more convenient for observation work.
Gang Tool Holders
Used to fix the tool, the tool change speed is fast, stable and durable
8-station turret
* High locking force and high precision * Casting shell, reliable rigidity
Cooling water pipe
Used to cool tools and increase tool life
CNC lathe spindle
Select brand spindle, high speed, strong capacity, long service life and accurate precision
Imported guide rails
The three axes use ball guides, which have high rigidity, low noise, and improve processing speed and accuracy.

Specifications :

CNC Lathe Machine TC-36
Max. swing over bed	mm	Φ500
Max. swing over cross slide	mm	Φ120
Max. processing diameter	mm	Φ400
Max. processing length	mm	300
Max. bar through hole diameter	mm	Φ35
X/Z axis travel	mm	400/350
X/Z rapid feed speed	m/min	30/30
X/Z feed motor power	kw	0.85
Spindle nose		A2-4
Spindle bore diameter	mm	Φ46
Spindle drawing pipe diameter	mm	45
Max.Spindle speed	rpm	6000
Chuck size	inch	5
Spindle motor	kw	3.7-5.5
Spindle center to ground distance	mm	1000mm
Spindle center to the front door distance	mm	420
X/Z position accuracy	mm	±0.003
X/Z repeatability	mm	±0.003
Guide type		Taiwan linear guide way
Cutting tool shape size	mm	20*20
Net weight	kg	2000
Machine size	mm	2200*1800*1600

FAQ
Q1: How can I choose the most suitable machines ?
A1: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .Q2: What's your main products of your company?A2: We specialized in CNC Milling Machine ,Vertical Machining Center ,Lathe Machines , Drilling Machine, Tapping Machine and so on.Q3: What's the Payment Terms ?A3: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight.Q4: What's the MOQ?A4: 1setQ5: What's the warranty?A5: One year.
