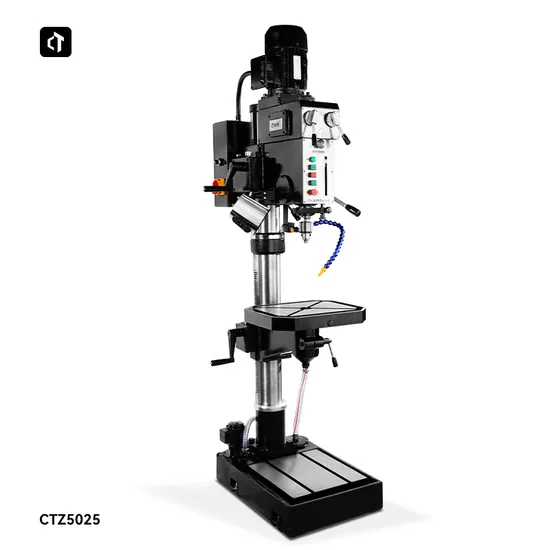

Ctz5025 Heavy Duty Drilling Machine, Industrial Duty Drilling, High-Precision

Product Description

MODEL	CTZ5025
Maximum drilling diameter (steel parts)	25 mm
Maximum tapping diameter (steel parts)	M18 mm
Distance from spindle centerline to column	240 mm
Distance from spindle end face to worktable	0-650 mm
Distance from spindle end surface to base working surface	865-1100 mm
Maximum stroke of spindle	110 mm
Spindle taper hole	MT3
Spindle speed change levels and range	6 level 125-2825 r/min
Maximum stroke of spindle box	235 mm
Maximum travel of worktable and bracket	440 mm
Effective working area of workbench (length × width)	400×330 mm
Effective working area of the base (length × width)	350×320 mm
Number of T-slots and slot width (workbench and base)	2×14 mm
Column diameter	100 mm
Main motor power and speed	750W 1390r/min
Cooling pump motor power and flow	40W 6 L/min
Machine tool dimensions (length × width × height)	740×440×1895 mm
Machine tool weight (net weight)	350 Kg

Features
The CTZ5025 cylindrical vertical drilling machine is a multi-functional drilling machine with a wide range of uses. It can perform drilling, reaming, countersinking, reaming, surface scraping, tapping and other processing. Suitable for single-piece and batch production machining and maintenance workshops and small machining enterprises. Main drive single-speed motor with sufficient power, full gear transmission, wide speed range. The spindle system has sufficient rigidity and good wear resistance measures, and has a tool unloading device.
Size/Weight
The appearance/package size of the product is measured manually, and there is a small error. It is normal, and the specific object shall prevail.
CTZ5025 Machine size 740x440x1895mm
CTZ5025 Machine weight 350KG
Hydraulic forklifts or cranes are recommended for handling
