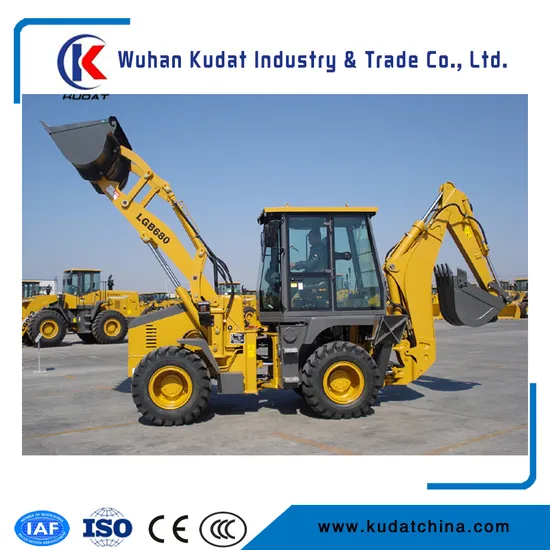

Compact Backhoe for Gargen and Construction
| US$42,000.00-43,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LGB680
Type
Wheel Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
0.5~1.0m³
Size
Medium-Sized
Certification
CE
Condition
New
Operating Weight
4900kg
Wheel Base
2000mm
Min. Ground Clearance
260mm
Loading Bucket Capacity
0.9m3
Bucket Dumping
2700mm
Engine Model
Xinchai498
Backhoe Capacity
0.2m3
Rated Power
45kw
Transport Package
Nude Packing
Specification
5100X1980X2900mm
Trademark
kudat
Origin
China
HS Code
84295100
Production Capacity
500units/Month
Product Description
Main performance parameter of LGB680:Engine:
Model: 4105G
Type: 4 stroke, inspiration naturally water cooling
Rated power: 59kw
Rated speed: 2400r/min
Max. Torque: 280N. M
Specific fuel consumption: 235g/kW. H
Digging equipment:
Digging bucket capacity: 0.3 m3
Max. Digging depth: 4380mm
Max. Digging radius: 5670mm
Max. Digging force: 44.4kN
Loading equipment:
Loading bucket capacity: 1.0 m3
Dump height: 2700mm
Dump reach: 860mm
Lifting capability: 33kN
Max. Load breakout force: 53.5kN
Turning radius (Outside of bucket): 5215mm
Max. Traction force: 60kN
Max. Grade-ability: 25%
Transmission (Km/h)
Gear forward: 10
Gear forward: 24
Gear forward: 9
Gear forward: 23
Dimensions and weight:
Length (with bucket on groud): 7570mm
Width: 2060mm
Height: 3300 mm
Load bucket width: 2236mm
Wheel base: 2300mm
Track base: 1650mm
Min. Ground clearance: 295mm
Operating weight: 8300kg
| Main parameters | |
| Operating weight | 8300kg |
| Digging bucket capability | 0.3m3 |
| Loading bucket capability | 1.0m3 |
| Max.traction | ≥60kN |
| Max. digging force | ≥44.4kN |
| Max. breakout force | ≥53.5kN |
| Level passing radius | 5225mm |
