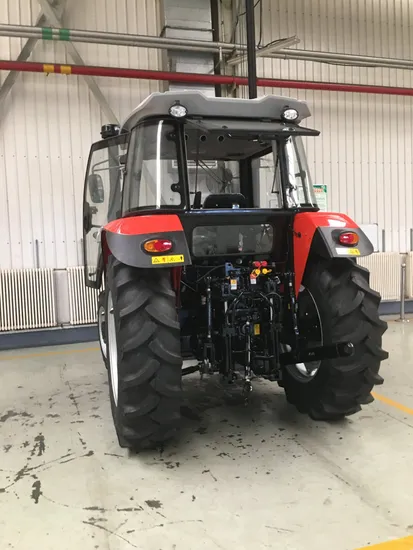

Deutz-Fahr Farmlead Brand Agricultural Farm Tractors
| US$6,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FL504
Power Source
Tractor
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Semi Hanging
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Certification
ECE, EU, CE
Color
Orange
Transport Package
Container, Sea, Train
Specification
20CBM
Trademark
Farmlead
Origin
China
HS Code
87019410
Production Capacity
40 Per Day
Product Description
| Main parameters | FL504 |
| Engine Type | QC498T50 |
| Max. Torque (Nm @ engine rpm) | (190~195)@1700 |
| Displacement (L) | 3.168 |
| Fuel tank capacity (L) | 70L/90L |
| Rating power of engine | 36.8/2400 |
| Fuel consumption @ nominal power | ≤248 |
| Air Intake Type | Natually-Aspirated |
| N / Displacement | 4/3.168 |
| No. of gears | 8F+4R/8F+8R/12F+12R |
| Shift method | Sliding sleeve/Synchronizer |
| Max. speed | 34.78km/h |
| Gear position | Command aside |
| PTO Speed | 540/760rpm 540/1000rpm(Optional) |
| The whole machine size (dimensions) mm | 3790×1620×2130(ROPS) 3968×1620×2577(CABIN) |
| Min. operation mass (kg) | 2135(ROPS) 2540(CABIN) |
| Mini turning Radius (m) | 4.3 |
| Rated traction force(KN) | 14 |
| Deck | Flat Deck |
| Wheelbase(mm) | 1991(ROPS) 2041(CABIN) |
| Minimum ground clearance(mm) | 325 |
| Front/rear wheel track | 1250/1300(common) |
| Tyre size | 8.3-20/12.4-28 |
| Steering type | Hydraulic steering |
| Steering Angle (4 x4) | 40° |
