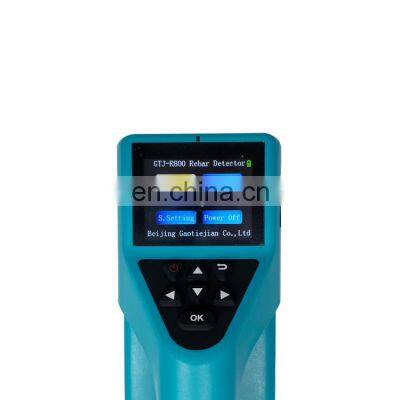

R800 Integrated Rebar Deep Scanner Steel bar Diameter Detector Concrete Covermeter

Product Description

Product Description
Product Usage and FeaturesR800 Integrated Rebar DetectorUsage:The integrated rebar detector is a portable non-destructive testing instrument, which are mainly used for detecting the internal reinforcement position, the protective layer thickness, reinforcement spacing and diameter of rebar.It is characterized in coil structure design, faster speed, higher accuracy, stronger.It can tests thickness of concrete cover and rebar diameter location.Features: 1.Integrated design, small in size and easy to carry.;2.Thickness detection mode is intuitive, showing thickness and steel spacing at the same time;3.Thickness detection mode can automatically store thickness and spacing, which greatly improves the detection efficiency;4.The waveform scanning mode also shows the thickness and spacing of the rebar protective layer;5. 2.8 inch high resolution color liquid crystal screen;6. Large TF card storage capacity, intuitive and convenient transmission;7. PC professional data analysis software, data processing and report generation can be easily completed.ParametersProductConcrete cover meter rebar locatorModelGTJ-R800Rebar dia. setting range6mm~50mmScope of rebar dia. estimationφ6mm~φ32mmConcrete cover test range1~210mmSmall range1mm~80mmLarge range1mm~210mmSuper Large range1mm~240mmMax. allowable errors of the Protective Layer Thickness1-80mm (±1mm)81~120mm (±2mm)121~210mm (±4mm)211~240mm (±6mm)Profile measurement functionSupportMesh measurement functionSupportWaveform measurement functionSupportprobe self-calibrationSupportHost parametersScreen size: 2.8 inch Resolution: 240*320Volume: 220*93*110mm Weight:0.6KGData transmission modeTF card; wireless cloud transmission (potional)Power suppyLithium batteryStorage capacity2000 Components *1000 Measuring pointsWorking environmentTemperature: -10℃ ~ +40℃ Humidity：≤ 90%RHDetailed ImagesGTJ-R800 Integrated Rebar ScannerIt is characterized in coil structure design, faster speed, higher accuracy, stronger.It can tests thickness of concrete cover and rebar diameter location.It can accurately draw the distribution map of the whole rebar, to provide test data with high precision and high speed.R800 Integrated Rebar Scanner can accurately draw the distribution map of the whole rebar, to provide test data with high precision and high speed.ApplicationContact USCangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 10 years, Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.Our Customers and patent certificatePacking & DeliveryWhy Choose us ?Q1:Are you a factory or trading company?A:We are a factory specializing in testing equipment used for evaluating construction and civil engineering materials. We also deal with various related equipment based on customer's requirement.Q2:Where is the nearest loading port?A:Qingdao port or Tianjin port.Q3:What’s the MOQ of the product?A: One set.Q4:Did your factory pass the ISO 9001?A: YES.Q5:How long is the production cycle after ordering?A:Based on the order. Generally it is about 3-10 days.Q6:What is the payment method?A:T/T payment, West Union, L/C payment ect.Q7: Do you support customizing service?A: Yes, we could customize the out package, machine's color, Logo and Voltage as request.
